DFROBOT SEN0523 Photoelectric Switch, Through Beam, 4m Sensing Range, 5 VDC, Cable GTIN UPC EAN: 6959420919680

SEN0523 is a IR photoelectric switch. This infrared (IR) break-beam sensor is a simple way to detect motion. It works by having an emitter side that sends out a beam of human-invisible IR light, then a receiver across the way which is sensitive to that same light. When something passes between the two, and it�s not transparent to IR, then the�beam is broken�and the receiver will output a signal. This IR break beam sensor works up to 4m with a fast and stable response of 0.5ms. With a small size, the module can be conveniently installed in a narrow space. Besides, it can operate within a temperature of -10°C to 60°C. Power the sensor by a voltage of DC 5V. It can be used with Arduino in smart robot competitions for simple motion detection, speed detection, timing, etc. Application includes simple motion detection, speed detection, timing.

• IR Photoelectric switch with 4m detection range

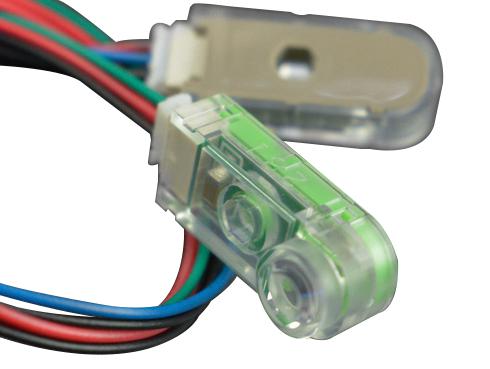

• Small in size, fast response, green PCB for the transmitter, black PCB for the receiver
• Operating voltage is DC 5V, output current is 30mA
• Output power is 100mW, sensing range is 4m, wavelength: 830nm
• Sensing mode: thru-beam (non-transparent objects)
• Emitting angle: straight line (infrared light), receiving angle is ±5°
• Response time is 0.5ms

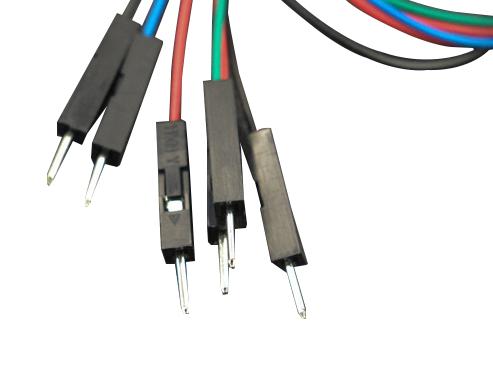

• Transmitter: red wire-5V, black wire-GND, green wire-floating
• Receiving: red wire-5V, black wire-GND, blue wire-out
• Operating temperature range from -10~+60°C
