Description

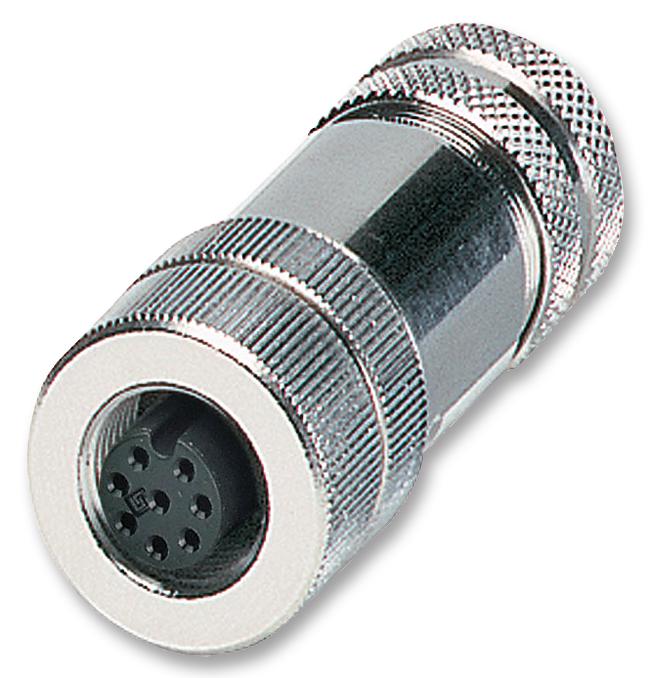

The SACC-M12FS-8CON-PG 9-SH is a 8-position M12 A-coded shielded Straight Socket with screw connection. It has gold-plated CuZn contacts, PA (polyamide) contact carrier and nickel-plated zinc die-cast grip body.
- Nickel-plated zinc die-cast knurl
- PG9 Cable gland
- Safe use in the field, thanks to a high degree of protection
- Flexible connector for on-site assembly
- Proven connection technology for a large selection of different conductors
- Reliable signal transmission - 360° shielding in environments with electromagnetic interference
- 2A Rated current at 40°C
- 30V Rated voltage
- >=100MR Insulation resistance
- 0.25 to 0.5mm² Conductor cross section
- IP67 Protection
Sensing & Instrumentation
Other details
| Brand | PHOENIX CONTACT |
| Part Number | SACC-M12FS-8CON-PG 9-SH |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| CAD Multiple Formats EN | |
