Description

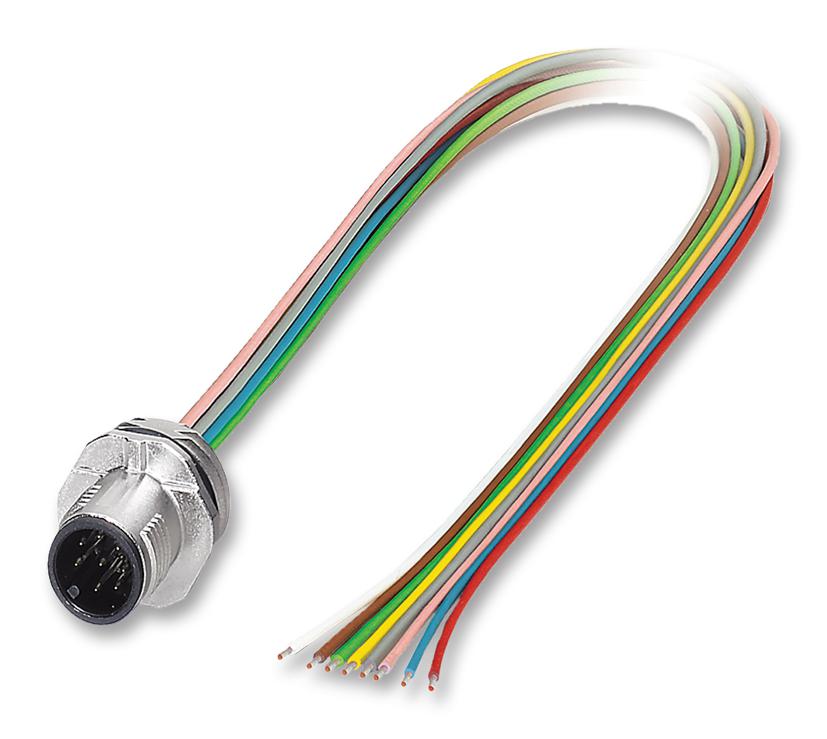

The SACC-E-MS-8CON-M16/0,5 SCO is a 8-position A-coded M12 sensor/actuator Flush-type Plug with individual wires connection. It has CuZn contacts and PA 66 (polyamide 66) contact carrier. Standard pin assignments and coding for signal, data and power transmission with uniform design-in design.
- Front/screw mounting with M16 thread
- Nickel-plated zinc die-cast knurls
- Pre-assembled with TPE litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- For high transmission safety - Shield connection to the housing with optional EMC nut
- 2A Rated current at 40°C
- 30V Rated voltage
- 0.8kV Rated surge voltage
- >=100MR Insulation resistance
- 0.25mm² Conductor cross section
- IP67 Protection
Sensing & Instrumentation
Other details
| Brand | PHOENIX CONTACT |
| Part Number | SACC-E-MS-8CON-M16/0,5 SCO |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
