Description

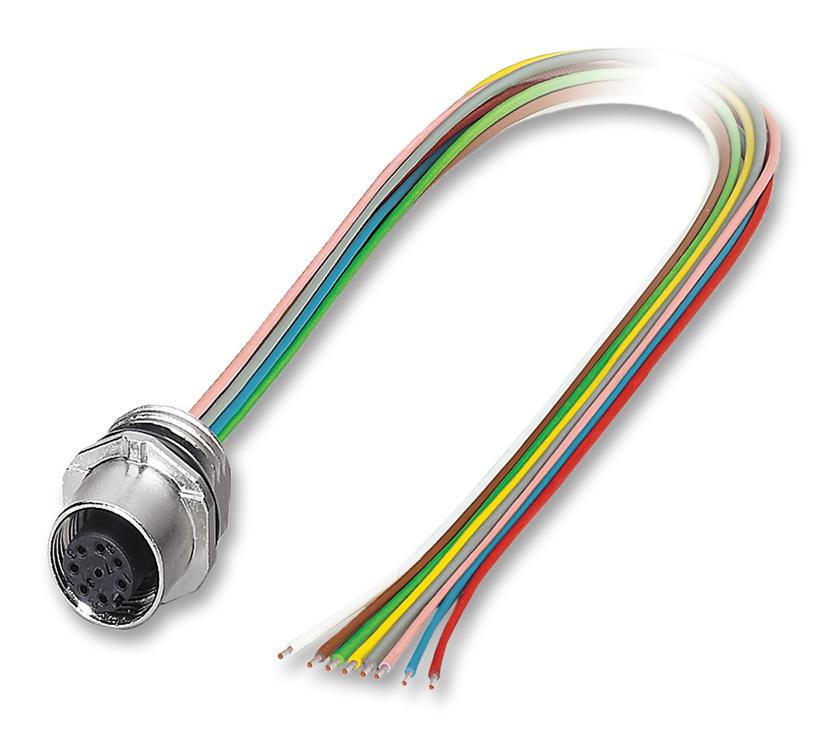

The SACC-E-FS-8CON-M16/0,5 SCO is a 8-position A-coded M12 Universal Flush-type Connector with individual wires connection. It has CuZn contacts, PA 66 (polyamide 66) contact carrier and nickel-plated zinc die-cast grip body. Standard pin assignments and coding for signal, data and power transmission with uniform design-in design.
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- For high transmission safety - Shield connection to the housing with optional EMC nut
- SPEEDCON fast locking system reduces cabling times
- Front mounting (M16 x 1.5)
- Nickel-plated zinc die-cast knurls
- TPE conductor insulation
- 2A Rated current at 40°C
- 30V Rated voltage
- 0.8kV Rated surge voltage
- >=100MR Insulation resistance
- 0.25mm² Conductor cross section
- IP67 Protection
Sensing & Instrumentation
Other details
| Brand | PHOENIX CONTACT |
| Part Number | SACC-E-FS-8CON-M16/0,5 SCO |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
