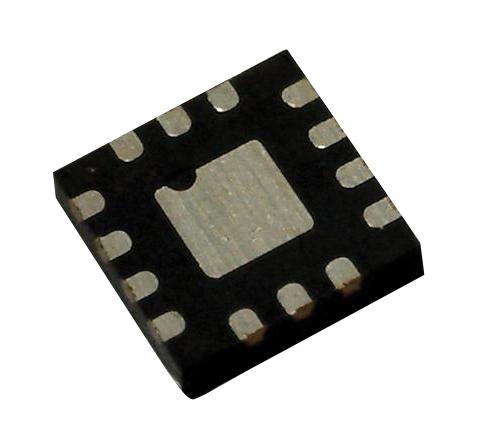

Texas Instruments TPS54623RHLT TPS54623RHLT DC-DC Switching Buck Step Down Regulator Adjustable 4.5V-17V in 6A out 1.6MHz QFN-14

The TPS54623RHLT is a synchronous step-down SWIFT� Converter with light load efficiency. It is optimized for small designs through high efficiency and integrating the high-side and low-side MOSFETs. Further space savings are achieved through current mode control, which reduces component count and by selecting a high switching frequency, reducing the inductor's footprint. The output voltage startup ramp is controlled by the SS/TR pin which allows operation as either a stand-alone power supply or in tracking situations. Power sequencing is also possible by correctly configuring the enable and the open-drain power good pins. Cycle-by-cycle current limiting on the high-side FET protects the device in overload situations and is enhanced by a low-side sourcing current limit which prevents current runaway. There is also a low-side sinking current limit which turns off the low-side MOSFET to prevent excessive reverse current.

• Light load efficient with pulse skip
• Synchronizes to external clock
• Monotonic start-up into pre-biased outputs
• Adjustable slow start/power sequencing
• Power good output monitor for undervoltage and overvoltage
• Adjustable input undervoltage lockout
• Supported by SwitcherProâ�¢ software tool
• Integrated 26/19mR MOSFETs
• 0.6V ±1% Voltage reference over temperature
• 2µA Low shutdown quiescent current
• Green product and no Sb/Br

Applications

Power Management, Communications & Networking

Other details

Brand	TEXAS INSTRUMENTS
Part Number	TPS54623RHLT
Quantity	Each (Supplied on Cut Tape)
Product Change Notice EN
