Texas Instruments TPA3125D2N Audio Power Amplifier 20 W D 2 Channel 10V to 26V DIP Pins

The TPA3125D2N is a 10W Stereo Class-D Audio Amplifier with SE outputs for driving stereo speakers in a single-ended configuration or a mono speaker in a bridge-tied-load configuration. The TPA3125D2 can drive stereo speakers as low as 4R. The efficiency of the TPA3125D2 eliminates the need for an external heat sink when playing music. The gain of the amplifier is controlled by two gain select pins. The gain selections are 20, 26, 32, 36dB. It operates in AD mode. There are two main configurations that may be used. For stereo operation, the TPA3125D2 should be configured in a single-ended (SE) half-bridge amplifier. For mono applications, TPA3125D2 may be used as a bridge-tied-load (BTL) amplifier. The traditional class-D modulation scheme, which is used in the TPA3125D2 BTL configuration, has a differential output where each output is 180 degrees out of phase and changes from ground to the supply voltage, VCC.

• 10W/ch (stereo SE) into an 8R load from a 24V supply
• 20W/ch (stereo SE) into an 8R load from a 24V supply
• Operates from +24V LCD backlight supply
• Efficient Class-D operation eliminates need for heat sinks
• Four selectable, fixed gain settings
• Single-ended analogue inputs
• Thermal and short-circuit protection with auto recovery
• Advanced power-off pop reduction
• Green product and no Sb/Br

Applications

Consumer Electronics, Multimedia, Audio

Warnings This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Other details

Brand	TEXAS INSTRUMENTS
Part Number	TPA3125D2N
Quantity	Each

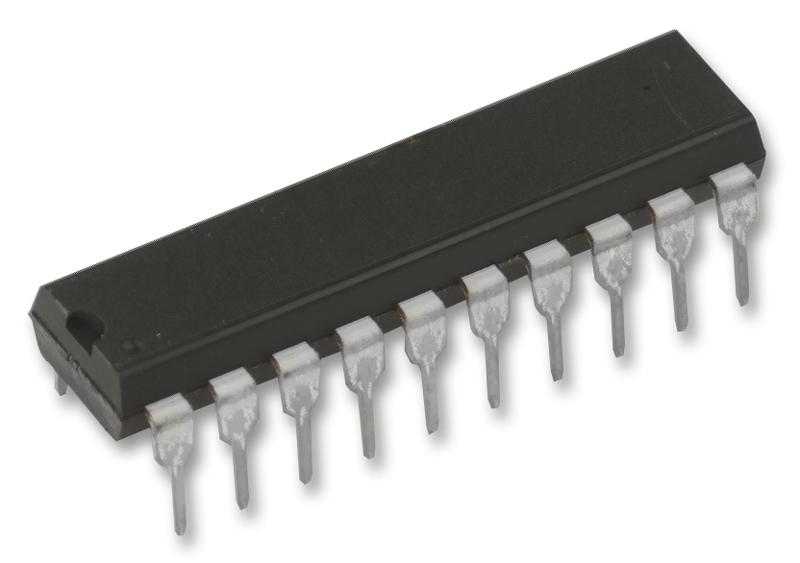

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
