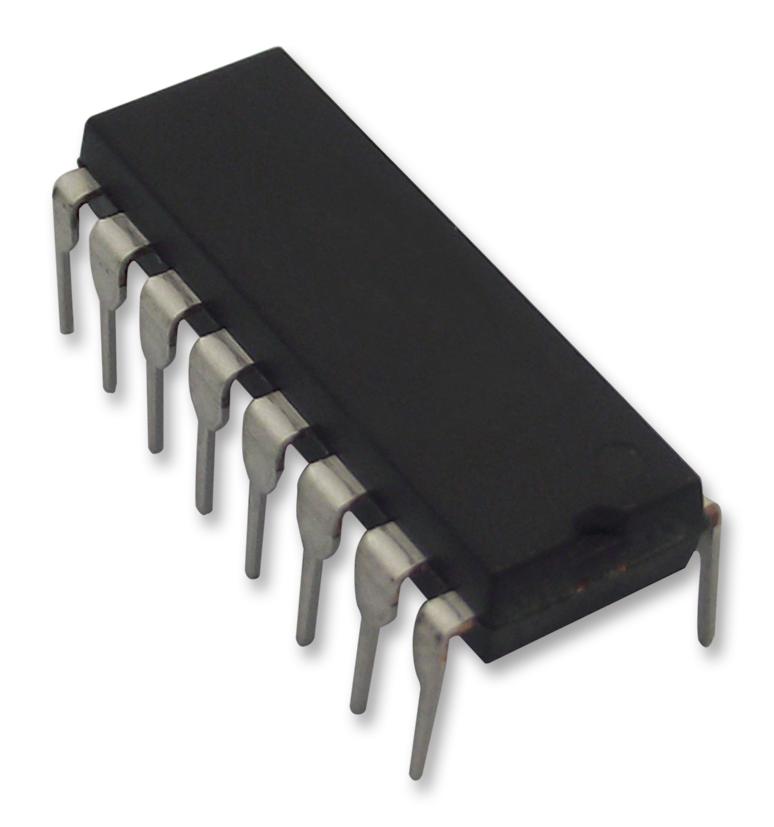

Texas Instruments SN75175N Differential Receiver RS422/RS423/RS485 4 Drivers 4.75V-5.25V Supply DIP-16

The SN75175N is a quadruple differential Line Receiver with 3-state outputs. Designed to meet the requirements of ANSI standards EIA/TIA-422-B, RS-423-B and RS-485 and several ITU recommendations. These standards are for balanced multipoint bus transmission at rates up to 10Mbs. The receiver has a common active-high enable. The receivers feature high input impedance, input hysteresis for increased noise immunity and input sensitivity of ?200mV over a common-mode input voltage range of ?12V. The SN75175 is designed for optimum performance when used with the quadruple differential line drivers. Designed for multipoint bus transmission on long bus lines in noisy environments.

• Meet ITU recommendations V.10, V.11, X.26 and X.27
• Common-mode input voltage range
• Low-power requirements
• Plug-in replacement

Applications

Industrial, Power Management, Lighting

Other details

Brand	TEXAS INSTRUMENTS
Part Number	SN75175N
Quantity	Each
