Texas Instruments SN74LS645-1N Bus Transceiver 74LS645 8 Channels 48 mA 4.75 V to 5.25 DIP-20

The SN74LS645-1N is an octal Bus Transceiver designed for asynchronous two-way communication between data buses. The devices transmit data from the A bus to the B bus or from the B bus to the A bus depending upon the level at the direction control (DIR) input. The enable input (G\) can be used to disable the device so the buses are effectively isolated.

• Hysteresis at bus inputs improves noise margins
• Choice of true or inverting logic
• 3-state outputs

Applications

Aerospace, Defence, Military, Communications & Networking

Other details

Brand	TEXAS INSTRUMENTS
Part Number	SN74LS645-1N
Quantity	Each

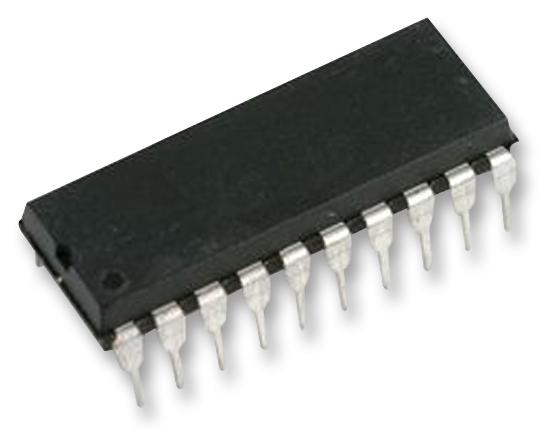

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
