Texas Instruments MSP430G2332IPW14 MSP430 Microcontroller Family MSP430G2x Series Microcontrollers 16bit 16 MHz

The MSP430G2332IPW14 is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1?s. The device configurations with 16-bit timer, 10-bit A/D converter, built-in communication capability using the universal serial communication interface and 16 general-purpose I/O pins. This device operates at a maximum frequency of 16MHz.

• 16-bit RISC architecture, 62.5ns instruction cycle time
• Internal frequencies up to 16MHz with four calibrated frequencies
• Internal very-low-power low-frequency oscillator
• 32kHz Crystal
• External digital clock source
• 16-bit Timer_A with 3 Capture/Compare registers
• Up to 16 Capacitive-touch enabled I/O pins
• Universal serial interface (USI) supporting SPI and I2C
• 10-bit 200ksps ADC with internal reference, sample-and-hold and autoscan
• Brownout detector

• Serial on-board programming
• No external programming voltage needed
• Programmable code protection by security fuse
• On-chip emulation logic with spy-bi-wire interface
• 220?A at 1MHz, 2.2V Active mode (AM) power consumption

Applications

Portable Devices, Test & Measurement, Sensing & Instrumentation, Aerospace, Defence, Military

Other details

Brand	TEXAS INSTRUMENTS
Part Number	MSP430G2332IPW14
Quantity	Each

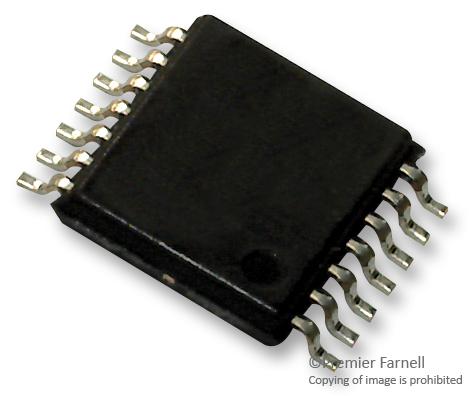

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
