Texas Instruments MSP430F248TPM MSP430 Microcontroller Family MSP430F2x Series Microcontrollers 16bit 16 MHz

The MSP430F248TPM is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1?s. The device configurations with two 16-bit timers, 12-bit A/D converter, a comparator, a hardware multiplier, four universal serial communication interface (USCI) modules and 48 general-purpose I/O pins. This device operates at a maximum frequency of 16MHz.

• 16-bit RISC architecture, 62.5ns instruction cycle time
• Internal frequencies up to 16MHz with four calibrated frequencies to ?1%
• Internal very-low-power low-frequency oscillator
• 32kHz Crystal
• Resonator clock
• External digital clock source
• External resistor
• 12-bit ADC with internal reference, sample-and-hold and autoscan feature
• 16-bit Timer_A with 3 Capture/Compare registers
• 16-bit Timer_B with 7 Capture/Compare registers

• Enhanced UART supporting auto-baudrate detection
• IrDA Encoder and decoder
• Synchronous SPI
• On-chip comparator
• Supply voltage supervisor/monitor with programmable level detection
• Brownout detector
• Bootstrap loader
• Serial on-board programming
• No external programming voltage needed
• Programmable code protection by security fuse

Applications

Test & Measurement, Portable Devices, Aerospace, Defence, Military

Other details

Brand	TEXAS INSTRUMENTS
Part Number	MSP430F248TPM
Quantity	Each

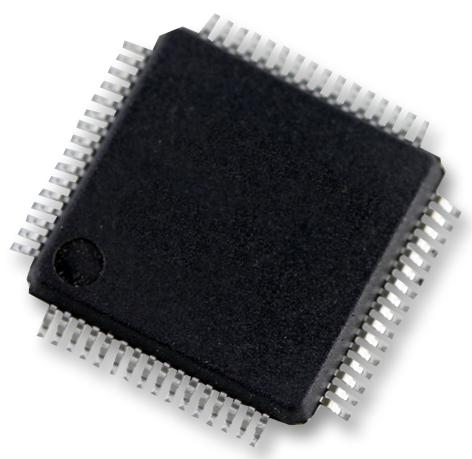

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
