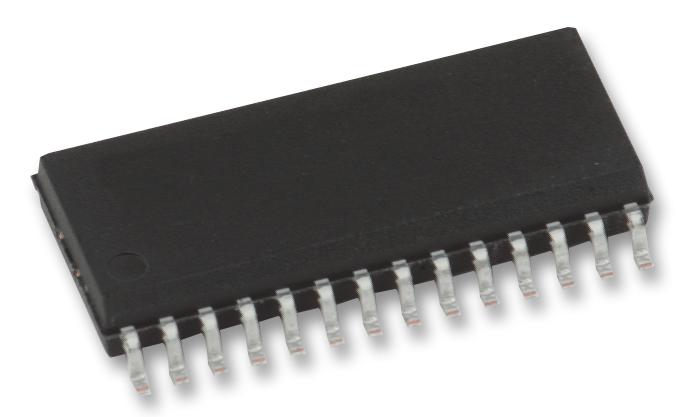

Texas Instruments MSP430F1232IDW MSP430F1232IDW 16 Bit Microcontroller MSP430 Family MSP430F1x Series Microcontrollers bit 8 MHz

The MSP430F1232IDW is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6µs. The device configurations with 16-bit timer, 10-bit A/D converter with integrated reference and data transfer controller (DTC) and 22 general-purpose I/O pins. This device operates at a maximum frequency of 8MHz.

• 16-bit RISC architecture, 125ns instruction cycle time
• Various internal resistors
• Single external resistor
• 32kHz Crystal
• High-frequency crystal
• Resonator clock
• External clock source
• 16-bit Timer
• A with three Capture/Compare registers
• 10-bit 200ksps ADC with internal reference, sample-and-hold, autoscan and data transfer controller
• Serial on-board programming
• No external programming voltage needed
• Programmable code protection by security fuse
• Supply voltage brownout protection
• Serial communication interface (USART) with software-selectable asynchronous UART or Synchronous SPI
• 200µA at 1MHz, 2.2V Active mode (AM) power consumption

Applications

Test & Measurement, Portable Devices, Sensing & Instrumentation, Imaging, Video & Vision, RF Communications
