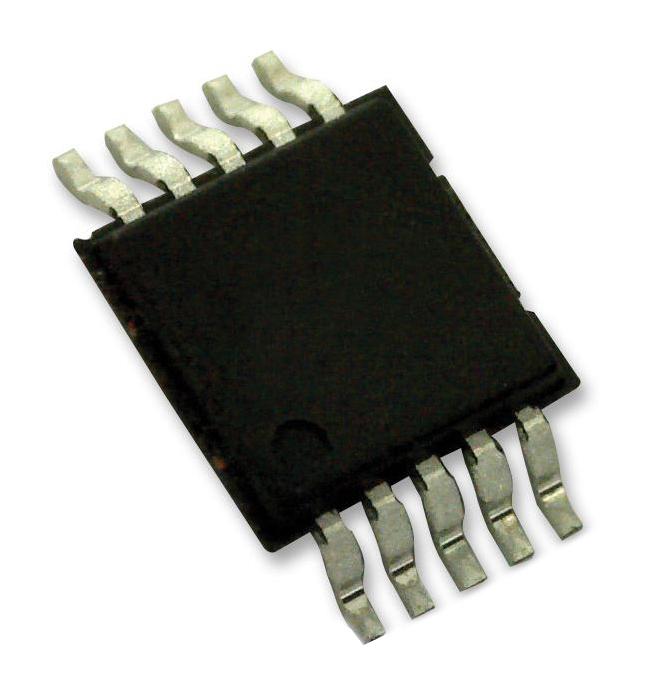

Texas Instruments DRV2605LDGST DRV2605LDGST Haptic Driver for LRA & ERM With Effect Library 2 V to 5.2 in VSSOP-10

The DRV2605LDGST is a low-voltage Haptic Driver which includes a haptic-effect library and provides a closed-loop actuator-control system for high-quality haptic feedback for ERM and LRA. The device offers a licensed version of TouchSense 2200 software from Immersion which eliminates the need to design haptic waveforms because the software includes over 100 licensed effects (6 ERM libraries and 1 LRA library) and audio- to-vibe features. The DRV2605L device also features automatic transition to an open-loop system in the event that an LRA actuator is not generating a valid back-EMF voltage. When the LRA generates a valid back-EMF voltage, the DRV2605L device automatically synchronizes with the LRA. The DRV2605L also allows for open-loop driving through the use of internally-generated PWM.

• I²C-controlled digital playback engine
• Waveform sequencer and trigger
• Real-time playback mode through I²C
• I²C Dual-mode drive (Open and Closed loop)
• Smart-loop architecture
• Automatic overdrive and braking
• Automatic actuator diagnostic
• Automatic level calibration
• Wide support for actuator models
• Drive compensation over battery discharge
• Efficient differential switching output drive
• PWM input with 0% to 100% duty-cycle control range
• Hardware trigger input
• Fast start-up time
• 1.8V compatible, VDD-tolerant digital interface

Applications

Consumer Electronics, Industrial, Portable Devices

Other details

Brand	TEXAS INSTRUMENTS
Part Number	DRV2605LDGST
Quantity	Each (Supplied on Cut Tape)
