| ₹ 4199.22 includes GST and import duties. | |
| B2B customers can avail ₹ 640.38 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

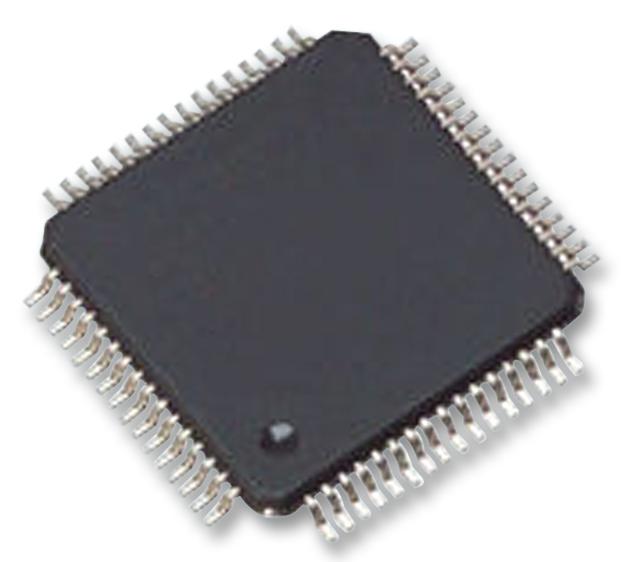

The ADS1274IPAPT is a 24-bit Analogue-to-digital Converter with data rates up to 144kSPS, allowing simultaneous sampling of four or eight channels. Traditionally, industrial delta-sigma ADCs offering good drift performance use digital filters with large pass-band droop. As a result, this 128kHz quad ADC has limited signal bandwidth and is mostly suited for dc measurements. High-resolution ADCs in audio applications offer larger usable bandwidths, but the offset and drift specifications are significantly weaker than respective industrial counterparts. The high-order, chopper-stabilized modulator achieves very low drift with low in-band noise. The onboard decimation filter suppresses modulator and signal out-of-band noise. This ADC provides an usable signal bandwidth up to 90% of the Nyquist rate with less than 0.005dB of ripple.
- Simultaneously measure four/eight channels
- 0.8µV/°C Offset drift
- 1.3ppm/°C Gain drift
- Linear phase digital filter
- Low sampling aperture error
- Modulator output option (digital filter bypass)
- Green product and no Sb/Br
Industrial, Sensing & Instrumentation, Audio
Warnings ESD sensitive device, take proper precaution while handling the device.Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | ADS1274IPAPT |
| Quantity | Each (Supplied on Cut Tape) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 4115.24 |
| 3-5 | ₹ 4073.24 |
| 5-10 | ₹ 3989.26 |
| 10+ | ₹ 3905.27 |
Bulk discount will be automatically applied during checkout based on quantity.
