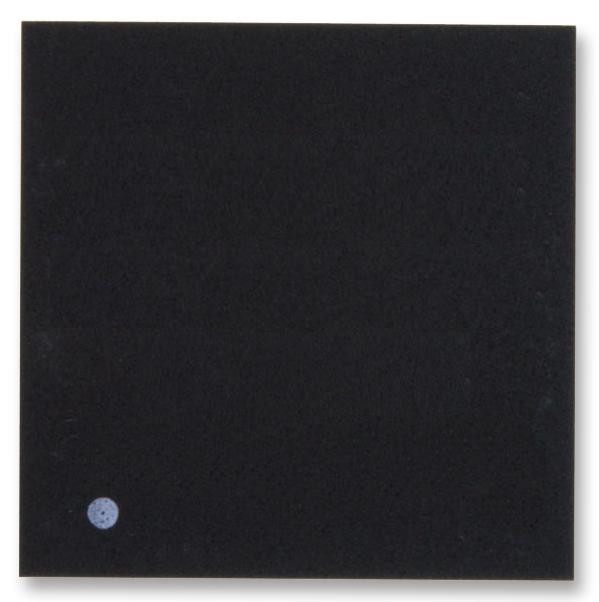

STMICROELECTRONICS STM32H7R7L8H6 ARM MCU, STM32 Family STM32H7 Series Microcontrollers, ARM Cortex-M7F, 32 bit, 600 MHz, 64 KB

STM32H7R7L8H6 is a high-performance Arm® Cortex®-M7 32bit, 600MHz MCU. The Cortex-M7 core features a floating point unit (FPU) that supports Arm double-precision (IEEE 754 compliant) and single-precision data processing instructions and data types. The Cortex-M7 core includes 32Kbytes of instruction cache and 32Kbytes of data cache. It supports a full set of DSP instructions and a memory protection unit (MPU) to enhance application security. The device embeds peripherals allowing mathematical/arithmetic function acceleration. Typical applications are motor drive and application control, medical equipment, industrial applications: PLC, inverters, circuit breakers, printers, and scanners, alarm systems, video intercom, and HVAC, home audio appliances, mobile applications, Internet of Things, wearable devices: smart watches.

• 2 × dual-port DMAs with FIFO and linked listed support
• Flexible life cycle scheme with debug authentication based on certificate or password
• Root of trust due to unique boot entry and secure hide protection area (HDP)
• 64Kbytes flash memory, 4Kbytes backup SRAM, 1/1 window watchdog / independent watchdog
• 1 real-time clock (RTC), 1 hash processor (HASH), 3/1 I²C/I³C (shared)
• 1 chrome-ART accelerator (DMA2D), 4 GIPOS (wake up pins)
• USB UCPD separate supply pad, operating voltage range from 1.71 to 3.6V
• Chrom-GRC (GFXMMU) allowing up to 20% of graphic resources optimization
• High power-efficiency SMPS step-down converter regulator to directly supply VCORE/external circuitry
• 225-pin TFBGA package, ambient temperature range from -40 to 85°C
