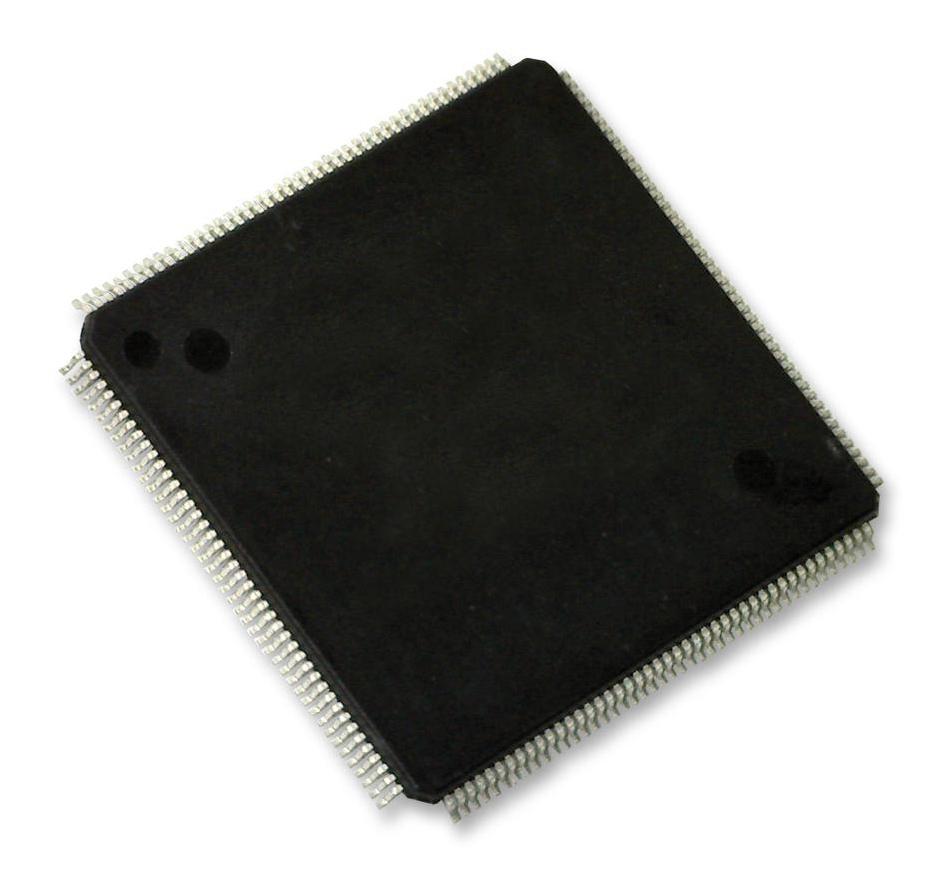

- Microcontroller with ARM® 32bit Cortex®-M4 CPU + FPU, frequency up to 180MHz in 176 pin LQFP package
- 512Kbytes of flash memory, 256Kbytes system/4Kbytes of backup SRAM
- LCD parallel interface, 8080/6800 modes, FMC memory controller
- 1.7V to 3.6V application supply and I/Os, 4 to 26MHz crystal oscillator
- 140 GPIO, 12bit ADC (24 channel), 12-bit DAC
- General-purpose DMA (16-stream DMA controller with FIFOs and burst support)
- 10 general purpose, 2 advanced control, 2 basic timers
- SWD & JTAG interfaces, Cortex-M4 Trace Macrocell�
- True random number generator, CRC calculation unit
- SPI / I2S, I2C, USART/UART, USB OTG FS/HS, CAN, SAI, SDIO, camera interface, Ethernet, LCD-TFT
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range:
STM32 Family STM32F4 Series Microcontrollers
|
| Device Core:
ARM Cortex-M4
|
| Data Bus Width:
32 bit
|
| Operating Frequency Max:
180MHz
|
| Program Memory Size:
512KB
|
| No. of Pins:
176Pins
|
| IC Case / Package:
LQFP
|
| No. of I/O's:
140I/O's
|
| Interfaces:
CAN, Ethernet, I2C, SPI, UART, USART, USB
|
| RAM Memory Size:
256KB
|
| ADC Channels:
24Channels
|
| ADC Resolution:
12Bit
|
| Supply Voltage Min:
1.8V
|
| Supply Voltage Max:
3.6V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
STM32
|
| MCU Series:
STM32F4
|
| Qualification:
-
|
| MSL:
MSL 3 - 168 hours
|
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STM32F429IET6 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
