Description

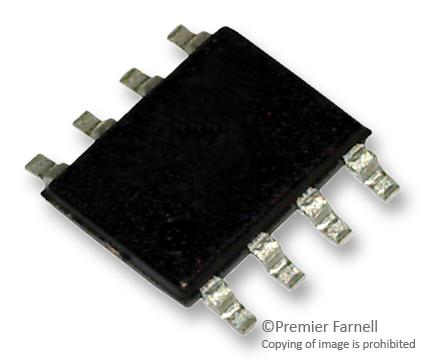

This is a Fixed LDO Voltage Regulator, 4.5V to 8V, 600mV drop, 3.3V/300mA out, HTSOP-J-8 product from ROHM with the model number BD33HA3MEFJ-LBH2
Product details
| Output Type | Fixed |
| Input Voltage Min | 4.5V |
| Input Voltage Max | 8V |
| Fixed Output Voltage Nom. | 3.3V |
| Adjustable Output Voltage Min | - |
| Adjustable Output Voltage Max | - |
| Output Current | 300mA |
| Dropout Voltage Vdo | 600mV |
| LDO Regulator Case Style | HTSOP-J |
| No. of Pins | 8Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 105°C |
| Product Range | 3.3V 300mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | ROHM |
| Part Number | BD33HA3MEFJ-LBH2 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
