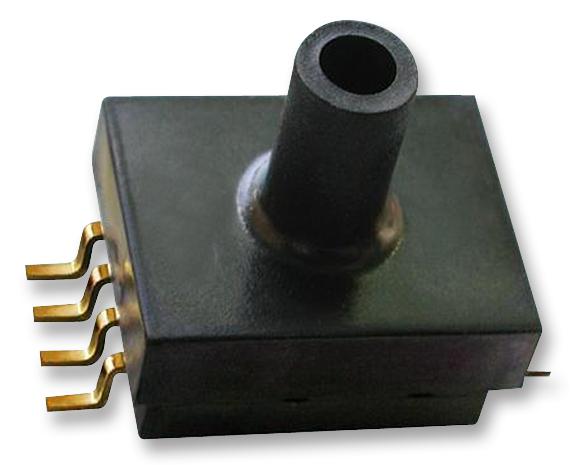

100KPa on-chip temperature compensated silicon pressure sensor. This silicon piezoresistive pressure sensor providing a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on chip. It is suitable for use in pump/motor control, robotics, level detectors, medical diagnostics, pressure switching, barometers and altimeters.
- Temperature compensated over 0°C to +85°C
- Easy to use chip carrier package options
- Available in absolute pressure type
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
NXP |
| Part Number |
MPXM2102AS |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
| CAD CadSoft_EAGLE EN |
|
