Description

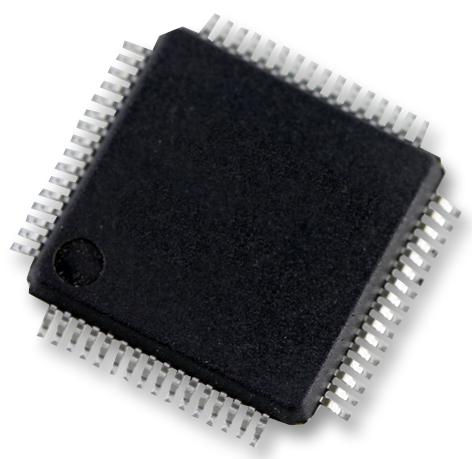

MK20DX256VLH7 is a Kinetis® K20-72MHz, full-speed USB, mixed-signal integration microcontroller (MCU) in a LQFP64 package.
- Based on Arm® Cortex®-M4 core
- 64KB SRAM, 288KB flash, 2KB EEPROM
- 3 x UART, 1 x SPI, 2 x I2C, 1 x USB controller, 1 x CAN, 40 x GPIO
- 2 x ADC, 1 x DAC
- Programmable gain amplifier, voltage reference
- CRC security
- Human machine touch system interface
- Supply voltage is 1.71 to 3.6V
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: Kinetis K Family K2x Series Microcontrollers |
| Device Core: ARM Cortex-M4 |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 72MHz |
| Program Memory Size: 256KB |
| No. of Pins: 64Pins |
| IC Case / Package: LQFP |
| No. of I/O's: 40I/O's |
| Interfaces: CAN, I2C, I2S, SPI, UART, USB |
| RAM Memory Size: 64KB |
| ADC Channels: 24Channels |
| ADC Resolution: 16Bit |
| Supply Voltage Min: 1.71V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 105°C |
| IC Mounting: Surface Mount |
| MCU Family: Kinetis K |
| MCU Series: K2x |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | NXP |
| Part Number | MK20DX256VLH7 |
| Quantity | Each |
| Technical Data Sheet EN |  |
