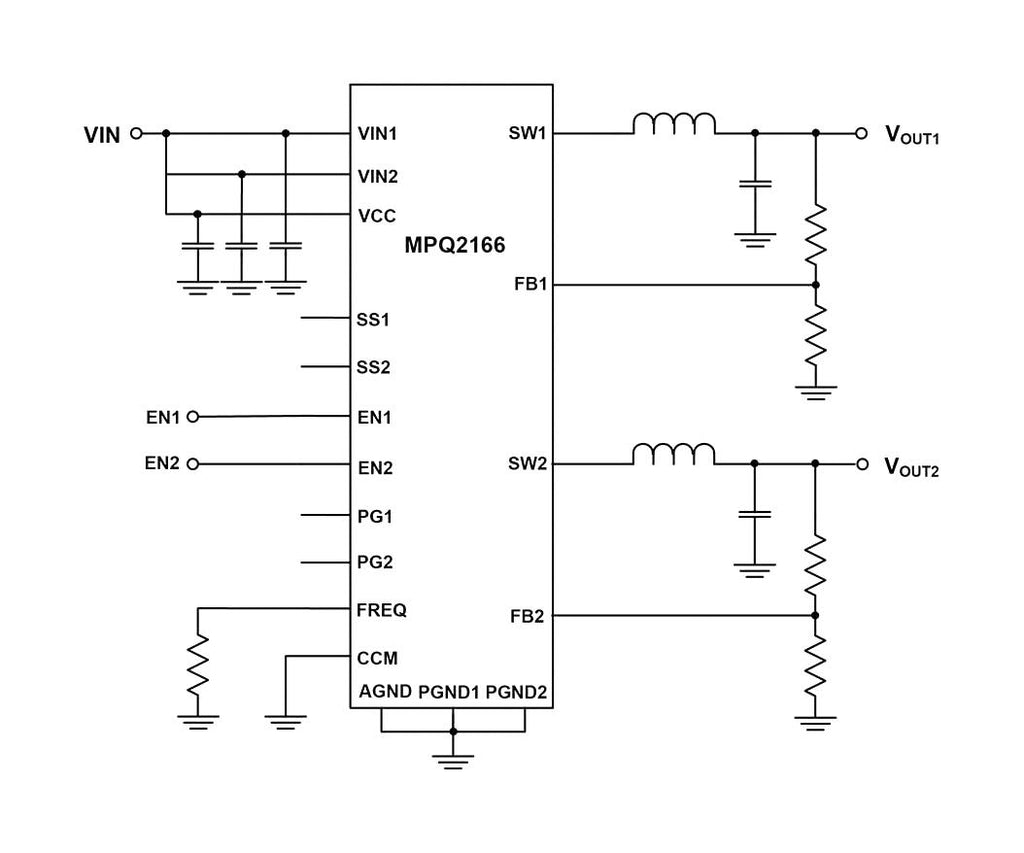

- 6V, dual 2A/2A or 3A/1A synchronous, adjustable step-down regulator
- 55mohm/20mohm RDS(ON)
- Programmed frequency up to 3MHz
- External sync clock up to 3MHz
- 180? phase shifted operation
- Power good indicators, external soft start (SS) and track
- Adjustable advanced asynchronous mode or forced continuous conduction mode
- Peak efficiency >90%
- 100% duty cycle operation
- 60µA quiescent current
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MPQ2166GD-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
