- Current limit switch with overvoltage clamp and reverse blocking in 10 pin QFN package
- 26V absolute maximum transient input voltage
- Selectable overvoltage clamp threshold
- Fast output overvoltage protection (OVP) response
- Integrated 43mohm power FET and reverse blocking MOSFET driver
- Adjustable current limit or fixed current limit when floating ILIMIT
- Soft-start time programmable through DV/DT and MODE
- Fast response for hard short protection
- Overcurrent protection, hiccup protection, thermal shutdown and auto-retry
- UL certified to UL2367, IEC60950-1 Efile # 322138
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP5016HGQH-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

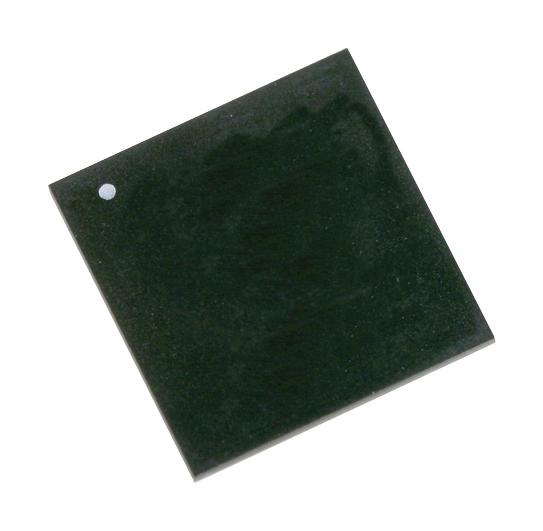

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
