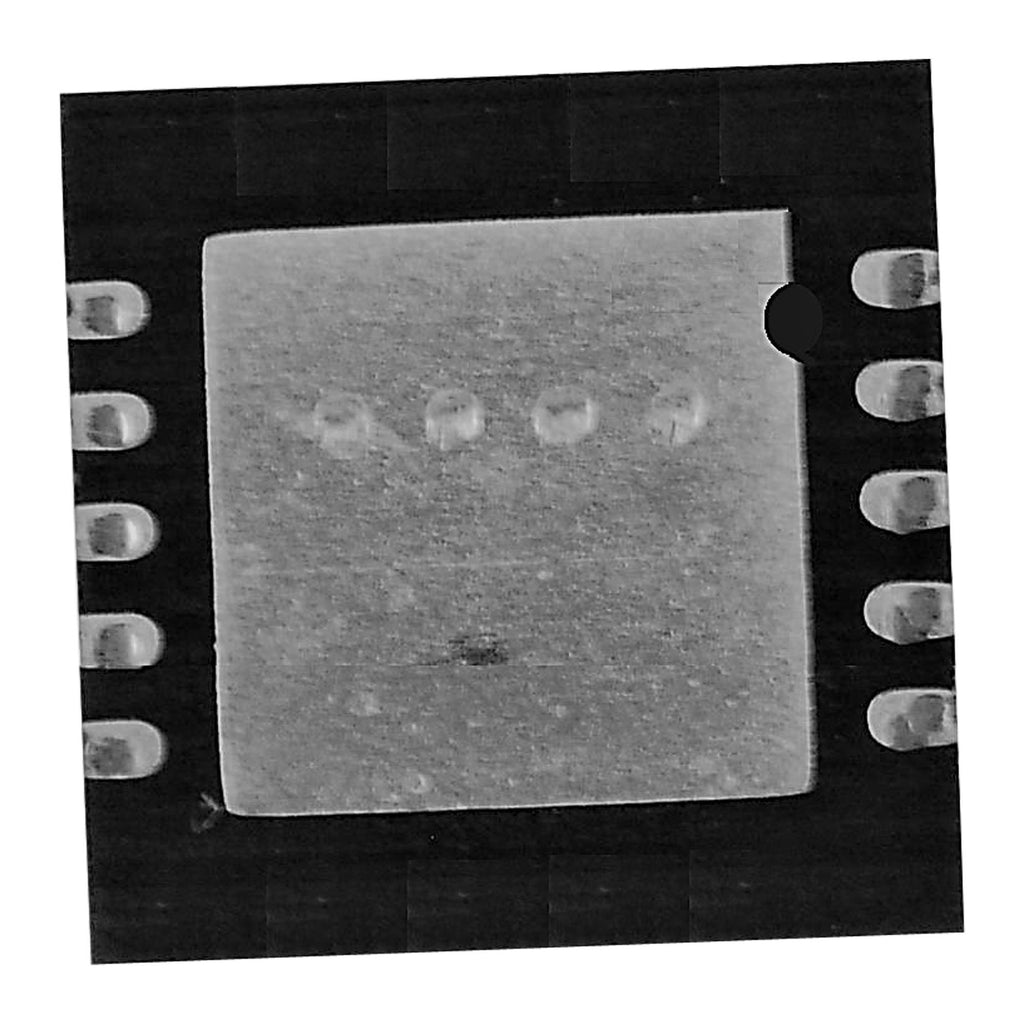

- Synchronous step-down switching converter in 10 pin QFN-EP package
- 20µA quiescent current, Less than 5µA low shutdown mode current
- 60V integrated MOSFETs with 0.7ohm and 2.25ohm Ron
- Programmable switching frequency
- Stable with ceramic output capacitors
- Low output ripple programmable soft-start
- Adjustable input UVLO hysteresis, 1.0V feedback reference voltage
- Precision peak current limit without current sensing resistor
- Programmable peak current limit
- Greater than 90% efficiency at 10V VIN to 5V VOUT/2mA
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP4568GQ-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
