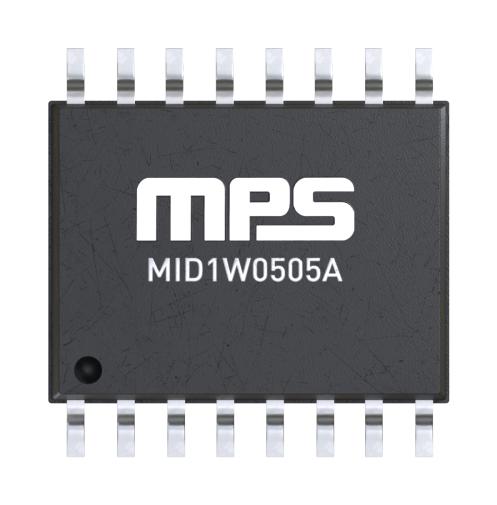

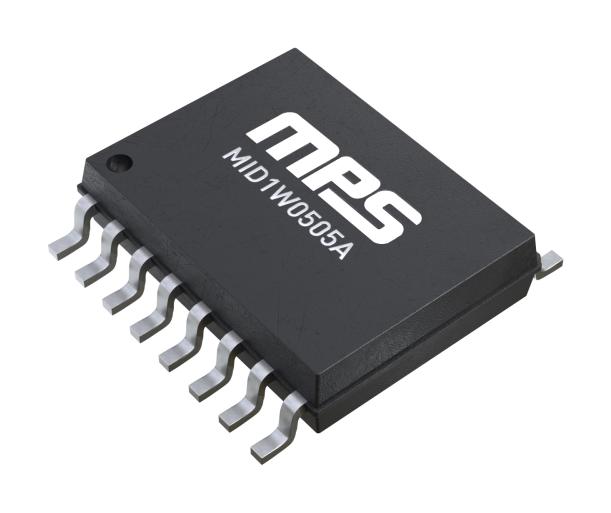

MONOLITHIC POWER SYSTEMS (MPS) MID1W0505AGY-3S-P DC-DC Switching Regulator, Isolated, Fixed, Semi Regulated, 3 kV, 4.5 to 5.5 V In, 5 V Out, WSOIC-16

MID1W0505AGY-3S-P is a semi-regulated, isolated DC/DC converter that can support 4.5V to 5.5V input voltage (VIN) applications across a -40°C to +125°C operating temperature range. It has excellent load regulation, line regulation, and supports up to 1W of output power (POUT). The device integrates a power MOSFET, transformer, and feedback (FB) circuit all in one chip. The MID1W0505A is a small solution that provides high reliability compared to traditional isolated power modules. Full protection features include short-circuit protection (SCP), over-current protection (OCP), and OTP protection. The MID1W0505A requires a minimal number of readily available, standard external components. Applications include industrial automation systems, isolated bias power for digital isolators, isolated bias power for RS-485, RS-422, and CAN Interfaces, isolated sensor power supplies, telecom and network devices (e.g. 5G RRUs, industrial CPE, and network gateways).

• Isolation voltage is 3KVDC min (TJ = 25°C)
• Efficiency is 54% typ (load = 0.2A, TJ = 25°C)
• Load regulation is 0.4% typ (Load = 0A to 0.2A, TJ = 25°C)
• Line regulation is 1.5% typ (load = 0.2A, VIN = 4.75V to 5.25V, TJ = 25°C)
• Excellent transient performance
• Meets CISPR32 Class B Emissions, UL1577 certified
• CB certified per IEC62368-1 3rd edition
• SOICW-16 package, operating temperature range from -40°C to +125°C

Notes

MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
