- 16Gb DDR5 SDRAM IC
- 2Gig x 8 configuration, decision feedback equalization (DFE), loopback mode

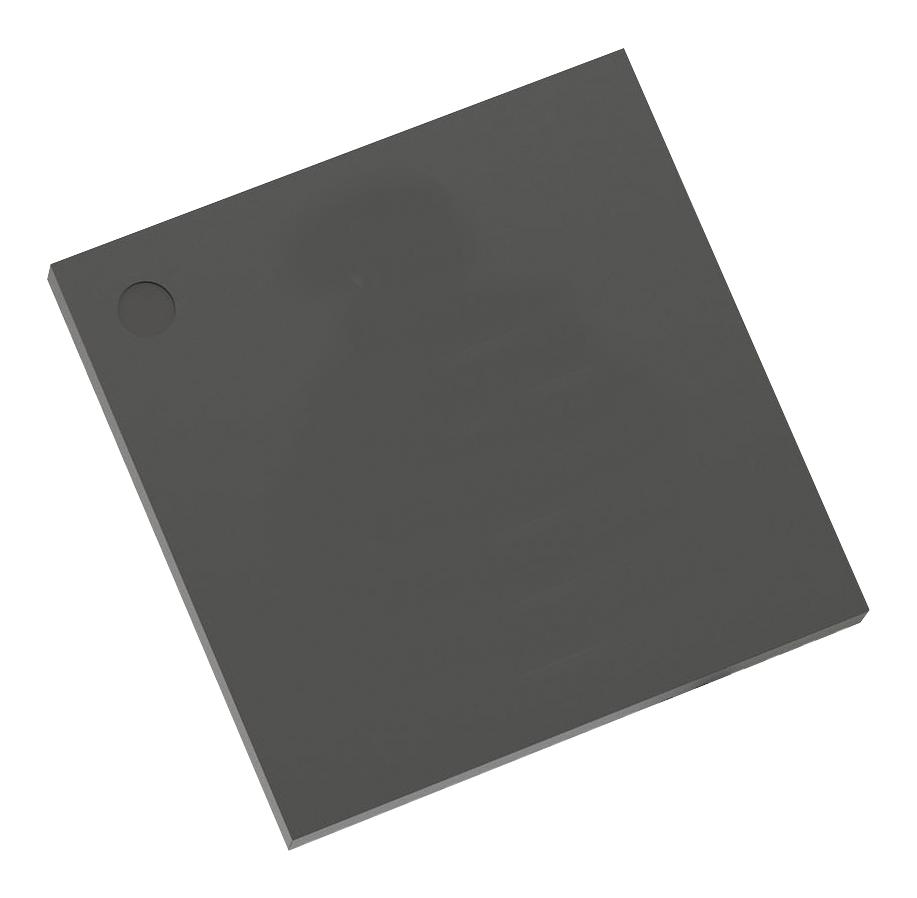

- Packaging style is 82-ball 9.0mm x 11.0mm FBGA, ECC transparency and error scrub
- Cycle time is 0.384ns at CL = 42, on-die ECC (bounded fault), CS/CA training mode
- Operating temperature range is -40°C to 95°C, multi-purpose command (MPC)
- Data rate is 5200Mb/s, VPP= 1.8V (NOM)
- Operating voltage range is VDD = VDDQ is 1.1V (NOM)
- On-die, internal, adjustable VREF generation for DQ, CA, CS
- 1.1V pseudo open-drain I/O, 1cycle/2cycle command structure
- 16 internal banks (x16): 4 groups of 4 banks each, 16n-bit prefetch architecture
Other details
| Brand |
MICRON |
| Part Number |
MT60B2G8HB-52B ITG |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
