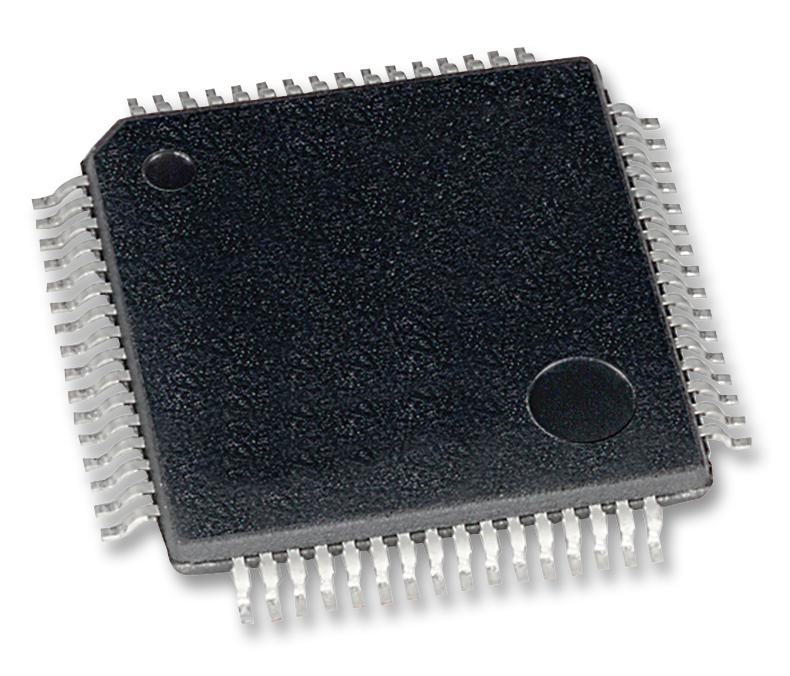

Microchip ATMEGA128-16AU 8 Bit MCU AVR Atmega Family ATmega128 Series Microcontrollers 16 MHz 128 KB 64 Pins Tqfp

The ATMEGA128-16AU is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 4kb EEPROM, an 8-channel 10-bit A/D converter and a JTAG interface for on-chip debugging. The device supports throughput of 16 MIPS at 16MHz and operates between 4.5 to 5.5V. By executing instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

• High-performance, Low-power AVR® 8-Bit Microcontroller
• Advanced RISC Architecture
• High Endurance Non-volatile Memory Segments
• QTouch® Library Support
• JTAG (IEEE Standard 1149.1 Compliant) Interface
• Power-on Reset and Programmable Brown-out Detection
• Internal Calibrated RC Oscillator
• External and Internal Interrupt Sources
• Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby Sleep Modes
• Software Selectable Clock Frequency
• ATmega103 Compatibility Mode Selected by a Fuse
• Global Pull-up Disable
• 0 to 16MHz Speed Grade

Applications

Power Management, Communications & Networking, Consumer Electronics

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	ATMEGA128-16AU
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
