Description

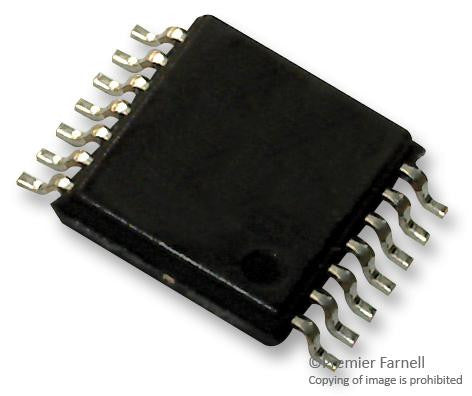

The MAX5479EUD+ is a dual non-volatile linear taper digital potentiometer in 14 pin TSSOP package. This device combines two independently controlled 256 position potentiometers and the device control is achieved through I²C interface. The low temperature coefficient makes the device ideal for applications requiring a low temperature coefficient variable resistor such as low drift, programmable gain amplifier circuit configurations.
- Supply voltage range is 2.7V to 5.25V
- Operating temperature range from -40°C to 85°C
- Power-on recall of wiper position from non-volatile memory
- EEPROM write protection
- Ratiometric temperature coefficient of 10ppm/°C
- Static supply current of 1µA
- Data rate of 400Kbps
- Three address inputs allows eight unique address combinations
- End to end resistance is 100Kohm at ±25% tolerance and temperature coefficient is 70ppm/°C
- ±0.5 LSB differential nonlinearity (DNL), ±1 LSB integral nonlinearity (INL) in voltage divider mode
Applications
Power Management
- :
- -40°C
- :
- 256
- :
- 85°C
- :
- I2C
- :
- 14Pins
- :
- ± 25%
- :
- Dual
- :
- Dual 256-Tap Non-Volatile Digital Pots
- :
- -
- :
- Linear
- :
- 100kohm
- :
- 70ppm/°C
- :
- 2.7V
- :
- Each
- :
- 5.25V
- :
- TSSOP
- :
- MSL 1 - Unlimited
Product details
| Operating Temperature Min | -40°C |
| No. of Steps | 256 |
| Operating Temperature Max | 85°C |
| Control Interface | I2C |
| No. of Pins | 14Pins |
| Resistance Tolerance | ± 25% |
| No. of Pots | Dual |
| Product Range | Dual 256-Tap Non-Volatile Digital Pots |
| Automotive Qualification Standard | - |
| Track Taper | Linear |
| End To End Resistance | 100kohm |
| Temperature Coefficient | 70ppm/°C |
| Supply Voltage Min | 2.7V |
| Packaging | Each |
| Supply Voltage Max | 5.25V |
| Potentiometer IC Case Style | TSSOP |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MAXIM INTEGRATED PRODUCTS |
| Part Number | MAX5479EUD+ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 804.73 |
| 3-5 | ₹ 796.52 |
| 5-10 | ₹ 780.09 |
| 10+ | ₹ 763.67 |
Bulk discount will be automatically applied during checkout based on quantity.
