Description

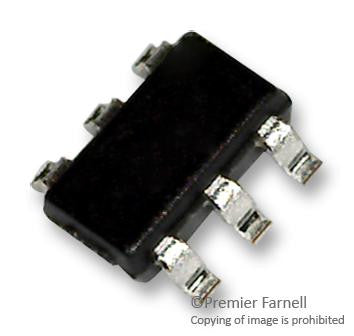

The MAX5161NEZT+T is a low power digital potentiometer in 6 pin SOT-23 package. The linear-taper digital potentiometer performs same function as a mechanical potentiometer or a variable resistor. They consist of a fixed resistor and a wiper contact with 32 tap points that are digitally controlled by two lines. It is ideal for applications requiring digitally controlled resistors. A nominal resistor temperature coefficient of 50ppm/°C and end to end and only 5ppm/°C ratiometric makes the IC ideal for applications requiring a low-temperature-coefficient variable resistor, such as low-tempco, adjustable-gain circuit configurations. It is also used at LCD screen adjustment, volume control and mechanical potentiometer replacement.
- Supply voltage range is 2.7V to 5.5V
- Operating temperature range from -40°C to 85°C
- Supports serial interface, 3-wire serial data input
- Resistance values is 200Kohm
- 32 tap positions
- Wiper resistance of 400 ohm
- Resistive tolerance of ±25%, 100nA supply current
- ±1LSB DNL, ±0.5LSB INL & ±2KV ESD protection
- Power-on reset, wiper goes to midscale (position 16)
- Glitchless switching between the resistor taps
Applications
Signal Processing
- :
- -40°C
- :
- 32
- :
- 85°C
- :
- Serial
- :
- 6Pins
- :
- ± 25%
- :
- Single
- :
- Single 32-Tap Volatile Digital Pots
- :
- -
- :
- Linear
- :
- 200kohm
- :
- 50ppm/°C
- :
- 2.7V
- :
- Cut Tape
- :
- 5.5V
- :
- SOT-23
- :
- MSL 1 - Unlimited
Product details
| Operating Temperature Min | -40°C |
| No. of Steps | 32 |
| Operating Temperature Max | 85°C |
| Control Interface | Serial |
| No. of Pins | 6Pins |
| Resistance Tolerance | ± 25% |
| No. of Pots | Single |
| Product Range | Single 32-Tap Volatile Digital Pots |
| Automotive Qualification Standard | - |
| Track Taper | Linear |
| End To End Resistance | 200kohm |
| Temperature Coefficient | 50ppm/°C |
| Supply Voltage Min | 2.7V |
| Packaging | Cut Tape |
| Supply Voltage Max | 5.5V |
| Potentiometer IC Case Style | SOT-23 |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MAXIM INTEGRATED PRODUCTS |
| Part Number | MAX5161NEZT+T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
