Low-side ultrafast MOSFET driver especially well suited for driving the latest IXYS MOSFETs and IGBTs. It is also suitable for use in switch mode power supplies, motor controls, DC to DC converters, class-D switching amplifiers and pulse transformer driver.
- Wide operating voltage range: 4.5V to 35V
- Extended operating temperature range -40°C to +125°C
- Low propagation delay time
- Low, 10µA supply current
- Low output impedance
- Configured as a non-inverting driver with an enable

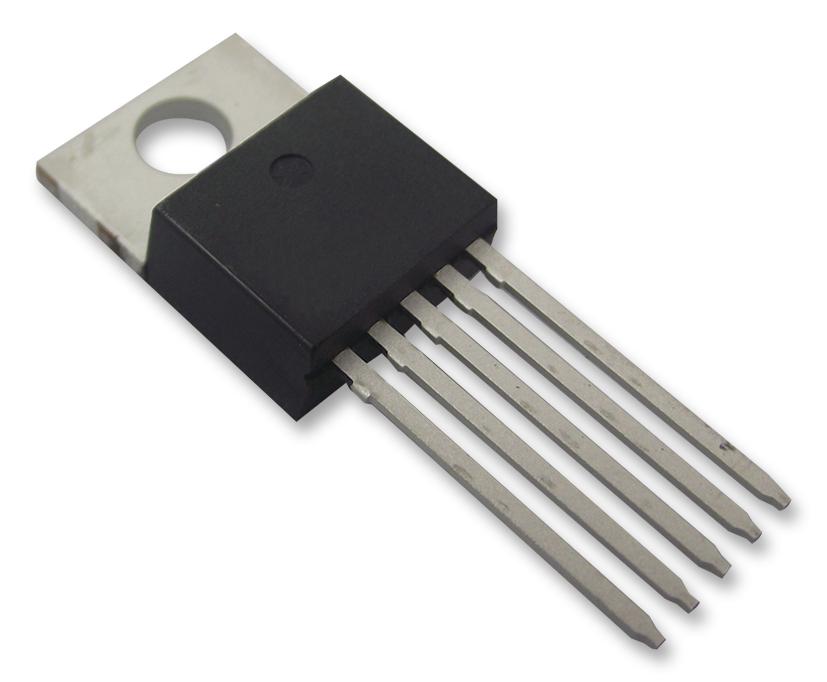

- 5-pin TO-220 package
Other details
| Brand |
LITTELFUSE |
| Part Number |
IXDN614CI |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
