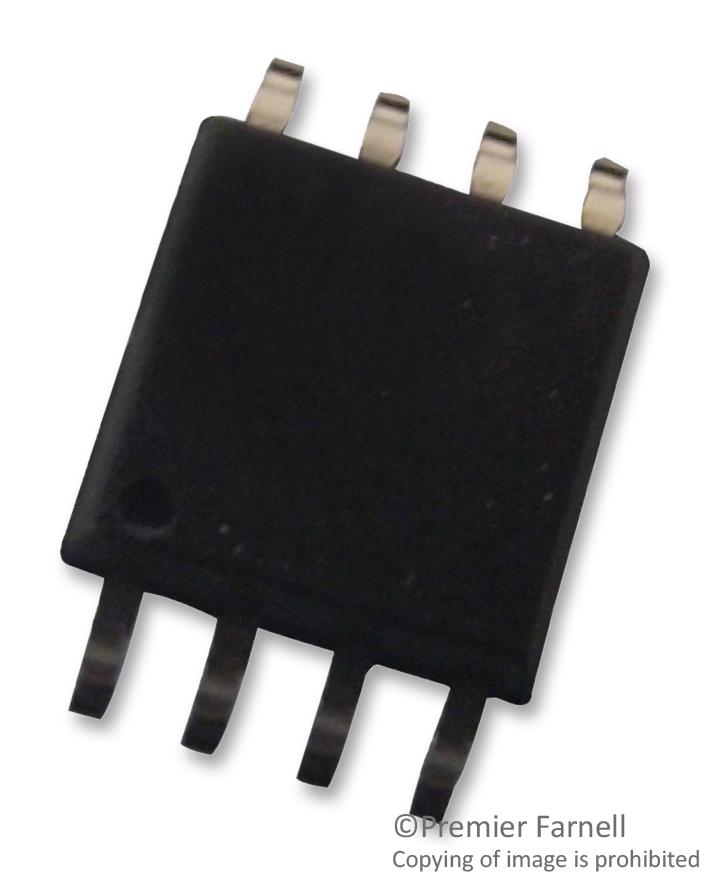

This is a IGBT Driver High Side, 3.5A, 3.1V to 17V Supply, 120ns/125ns Delay, EiceDRIVER 1EDC Series, WSOIC-8 product from INFINEON with the model number 1EDC20H12AHXUMA1
Product details
| Driver Configuration |
High Side |
| Peak Output Current |
3.5A |
| Supply Voltage Min |
3.1V |
| Supply Voltage Max |
17V |
| Driver Case Style |
WSOIC |
| No. of Pins |
8Pins |
| Input Delay |
120ns |
| Output Delay |
125ns |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
125°C |
| Product Range |
EiceDRIVER 1EDC Series |
Other details
| Brand |
INFINEON |
| Part Number |
1EDC20H12AHXUMA1 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
