| ₹ 180.21 includes GST and import duties. | |
| B2B customers can avail ₹ 27.48 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

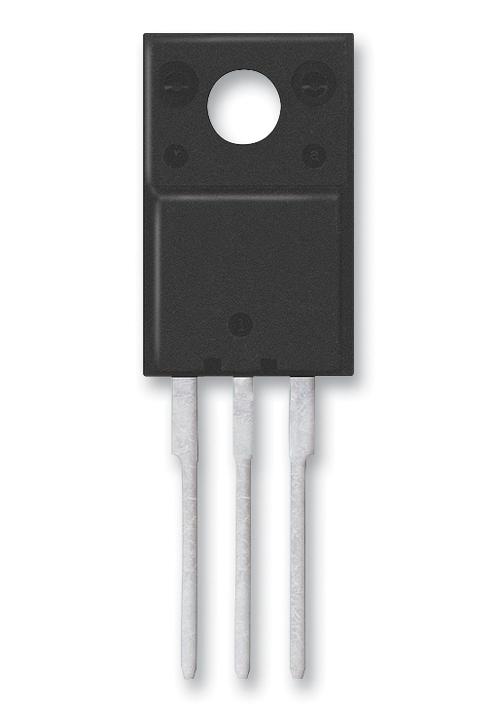

The SuperFET II MOSFET is a new high-voltage super-junction (SJ) MOSFET family that employs charge balance technology to achieve exceptionally low on-resistance and reduced gate charge performance. This technology is optimized to minimize conduction loss, deliver superior switching performance, and enhance dv/dt rate and avalanche energy handling.
- Typ. RDS(on) = 2? @ VGS = 10V
- 650 V @ TJ = 150°C
- Ultra Low Gate Charge (Typ. Qg = 20 nC)
- Low Effective Output Capacitance (Typ. Coss(eff.) = 90 pF)
- 100% Avalanche Tested
Applications
Telecom, DC/DC Converters, Sound & Video, Alternative Energy
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | HMF04N65S |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 176.61 |
| 3-5 | ₹ 174.8 |
| 5-10 | ₹ 171.2 |
| 10+ | ₹ 167.6 |
Bulk discount will be automatically applied during checkout based on quantity.
