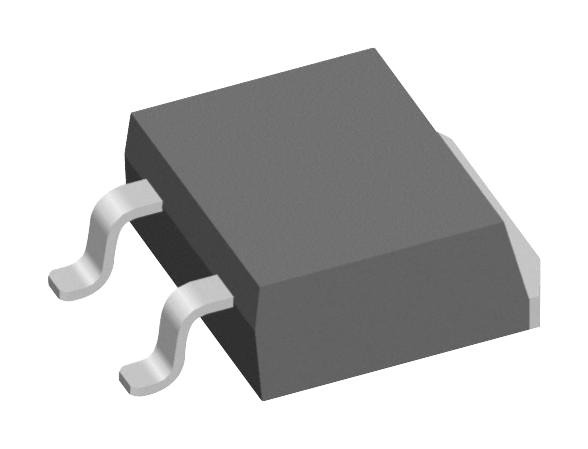

High voltage depletion mode power MOSFET suitable for use in audio amplifiers, start-up circuits, protection circuits, ramp generators, current regulators and active loads applications.
- High voltage package
- Normally on mode
- International standard package
- Moulding epoxies meet UL94V-0 flammability classification
- Easy to mount
- Space savings
- High power density
Product details
| Channel Type:
N Channel
|
| Drain Source Voltage Vds:
1kV
|
| Continuous Drain Current Id:
800mA
|
| Drain Source On State Resistance:
21ohm
|
| Transistor Case Style:
TO-263HV
|
| Transistor Mounting:
Surface Mount
|
| Rds(on) Test Voltage:
0V
|
| Gate Source Threshold Voltage Max:
4V
|
| Power Dissipation:
60W
|
| No. of Pins:
3Pins
|
| Operating Temperature Max:
150°C
|
| Product Range:
-
|
| Qualification:
-
|
| MSL:
-
|
Other details
| Brand |
LITTELFUSE |
| Part Number |
IXTA08N100D2HV |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
