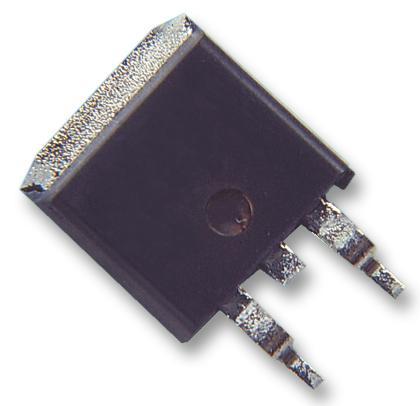

Standard rectifier single diode suitable for use in diode for main rectification, for single and three phase bridge configurations applications.
- Planar passivated chips
- Very low leakage current
- Very low forward voltage drop
- Improved thermal behaviour
Product details
| Repetitive Peak Reverse Voltage:
1.6kV
|
| Average Forward Current:
30A
|
| Diode Configuration:
Single
|
| Forward Voltage Max:
1.6V
|
| Reverse Recovery Time:
-
|
| Forward Surge Current:
325A
|
| Operating Temperature Max:
175°C
|
| Diode Case Style:
TO-263 (D2PAK)
|
| No. of Pins:
3Pins
|
| Product Range:
-
|
| Qualification:
-
|
Other details
| Brand |
LITTELFUSE |
| Part Number |
DSI30-16AS-TRL |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
