| ₹ 381.66 includes GST and import duties. | |
| B2B customers can avail ₹ 58.2 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

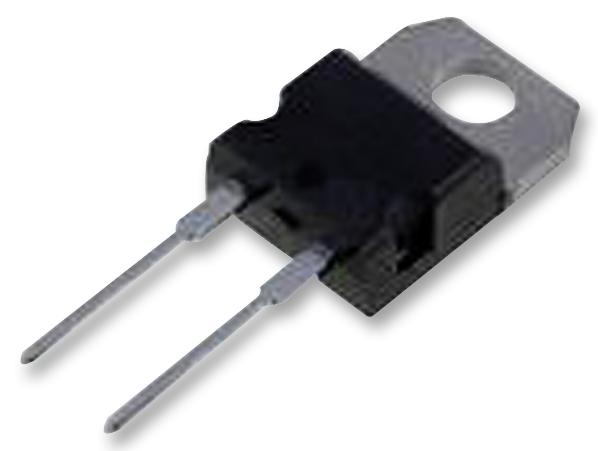

The DSI30-12A is a Standard Rectifier features planar passivated chips, very low leakage current and very low forward voltage drop. This rectifier is suitable for single- and three-phase bridge configurations.
- Improved thermal behaviour
- 0.82V Threshold voltage
- 14.1mR Slope resistance
- 160W at 25°C Total power dissipation
- 10pF at 400V/1MHz Junction capacitance
- Epoxy meets UL94V-0
Applications
Power Management
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Repetitive Peak Reverse Voltage: 1.2kV |
| Average Forward Current: 30A |
| Diode Configuration: Single |
| Forward Voltage Max: 630mV |
| Reverse Recovery Time: - |
| Forward Surge Current: 300A |
| Operating Temperature Max: 150°C |
| Diode Case Style: TO-220AB |
| No. of Pins: 2Pins |
| Product Range: DSI30 |
| Qualification: - |
Other details
| Brand | IXYS SEMICONDUCTOR |
| Part Number | DSI30-12A |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 374.03 |
| 3-5 | ₹ 370.21 |
| 5-10 | ₹ 362.58 |
| 10+ | ₹ 354.94 |
Bulk discount will be automatically applied during checkout based on quantity.
