Description

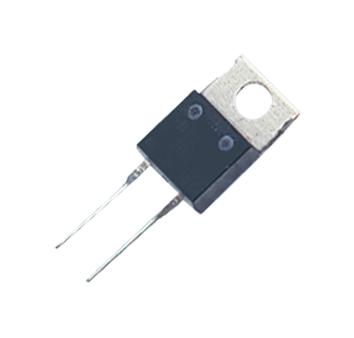

The DSEP29-12A is a HiPerFRED� Epitaxial Diode with soft-recovery. It features low IRM reduces power dissipation within the diode and turn-on loss in the commutating switch. It is used as anti-parallel diode for high frequency switching devices, anti-saturation diode, snubber diode, free-wheeling diode in converters, rectifiers in switch mode power supplies (SMPS), inductive heating and melting, uninterruptible power supplies (UPS) and ultrasonic cleaners and welders.
- International standard package
- Planar passivated chips
- Very short recovery time
- Extremely low switching losses
- Low IRM-values
- UL94V-0 Flammability rating
- Avalanche voltage rated for reliable operation
- Soft reverse recovery for low EMI/RFI
Applications
Power Management, Industrial, Motor Drive & Control
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Repetitive Peak Reverse Voltage: 1.2kV |
| Average Forward Current: 30A |
| Diode Configuration: Single |
| Forward Voltage Max: 1.81V |
| Reverse Recovery Time: 40ns |
| Forward Surge Current: 200A |
| Operating Temperature Max: 175°C |
| Diode Case Style: TO-220AC |
| No. of Pins: 2 Pin |
| Product Range: DSEP2 |
| Qualification: - |
Other details
| Brand | IXYS SEMICONDUCTOR |
| Part Number | DSEP29-12A |
| Quantity | Each |
| Technical Data Sheet EN |  |
