Description

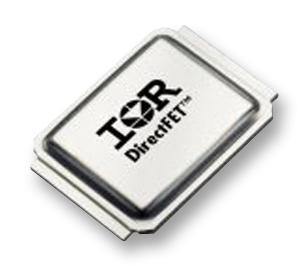

The IRF7946TRPBF is a DirectFET® N-channel Power MOSFET offers improved gate, avalanche and dynamic dV/dt ruggedness. It is suitable for battery-powered circuits, half-bridge and full-bridge topologies, synchronous rectifier applications, DC-to-DC and AC-to-DC converters.
- Fully characterized capacitance and avalanche SOA
- Enhanced body diode dV/dt and di/dt capability
Applications
Motor Drive & Control, Power Management
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Channel Type: N Channel |
| Drain Source Voltage Vds: 40V |
| Continuous Drain Current Id: 90A |
| Drain Source On State Resistance: 0.0011ohm |
| Transistor Case Style: DirectFET MX |
| Transistor Mounting: Surface Mount |
| Rds(on) Test Voltage: 10V |
| Gate Source Threshold Voltage Max: 3V |
| Power Dissipation: 96W |
| No. of Pins: 7Pins |
| Operating Temperature Max: 150°C |
| Product Range: - |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | INFINEON |
| Part Number | IRF7946TRPBF |
| Quantity | Each |
| Technical Data Sheet EN |  |
