650V CoolMOS� C7 power transistor, a revolutionary technology for high voltage power MOSFETs. Designed according to the superjunction (SJ) principle and suitable for use in PFC stages and PWM stages (TTF, LLC) for high power/performance SMPS e.g. computing, server, telecom, UPS and solar.
- Increased MOSFET dv/dt ruggedness
- Better efficiency due to best in class FOM RDS(on) *Eoss and RDS(on)*Qg

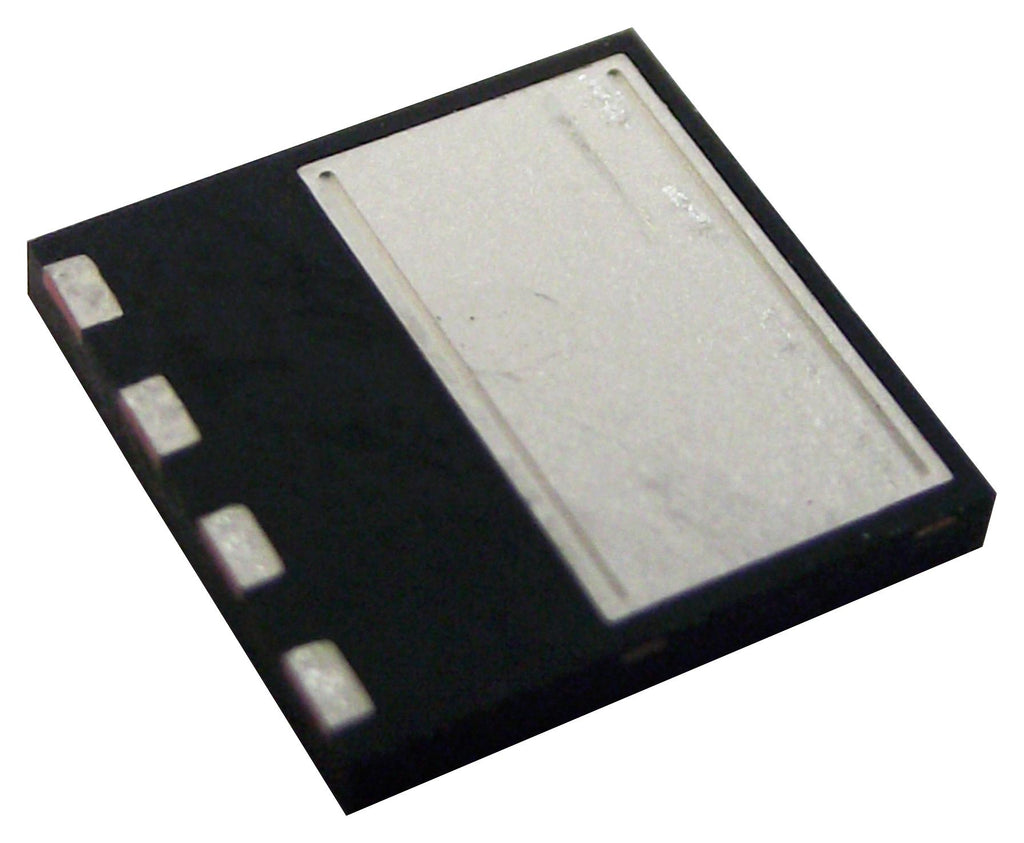

- Thin PAK SMD package with very low parasitic inductance to enable fast and reliable switching
- Easy to use/drive due to driver source pin for better control of the gate
- Qualified for industrial grade applications according to JEDEC (J-STD20 and JESD22)
- Enabling higher system efficiency by lower switching losses
- Enabling higher frequency/increased power density solutions
- System cost/size savings due to reduced cooling requirements
- Higher system reliability due to lower operating temperatures
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
INFINEON |
| Part Number |
IPL65R070C7AUMA1 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
