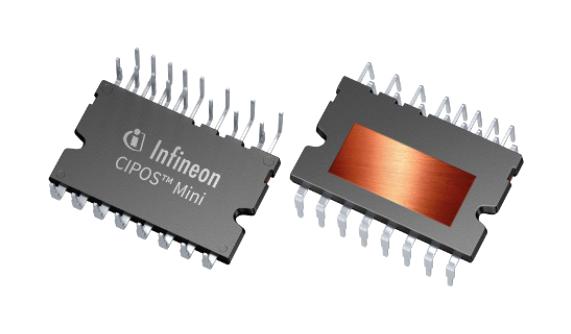

IM535U6DXKMA1 is a CIPOS� Mini 600V, 30A three-phase TRENCHSTOP� IGBT based intelligent power module with open emitter in DIP 36x21D package. It provides fully featured compact inverter solution with DCB substrate to enable excellent thermal performance. Moreover, it enables higher power capability based on Infineon's leading-edge TRENCHSTOP� IGBTs and anti-parallel diodes together with optimized SOI gate driver along with excellent thermal conduction and electrical isolation.
- Based on TRENCHSTOP� IGBT
- Rugged SOI gate driver technology
- Integrated bootstrap function
- Over current shutdown
- All of 6 switches turn off during protection
- Under-voltage lockout at all channels
- Sleep function
- Cross-conduction prevention
- Built-in temperature monitoring
- Motor power rating up to 3000 W at 10 kHz
Other details
| Brand |
INFINEON |
| Part Number |
IM535U6DXKMA1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
