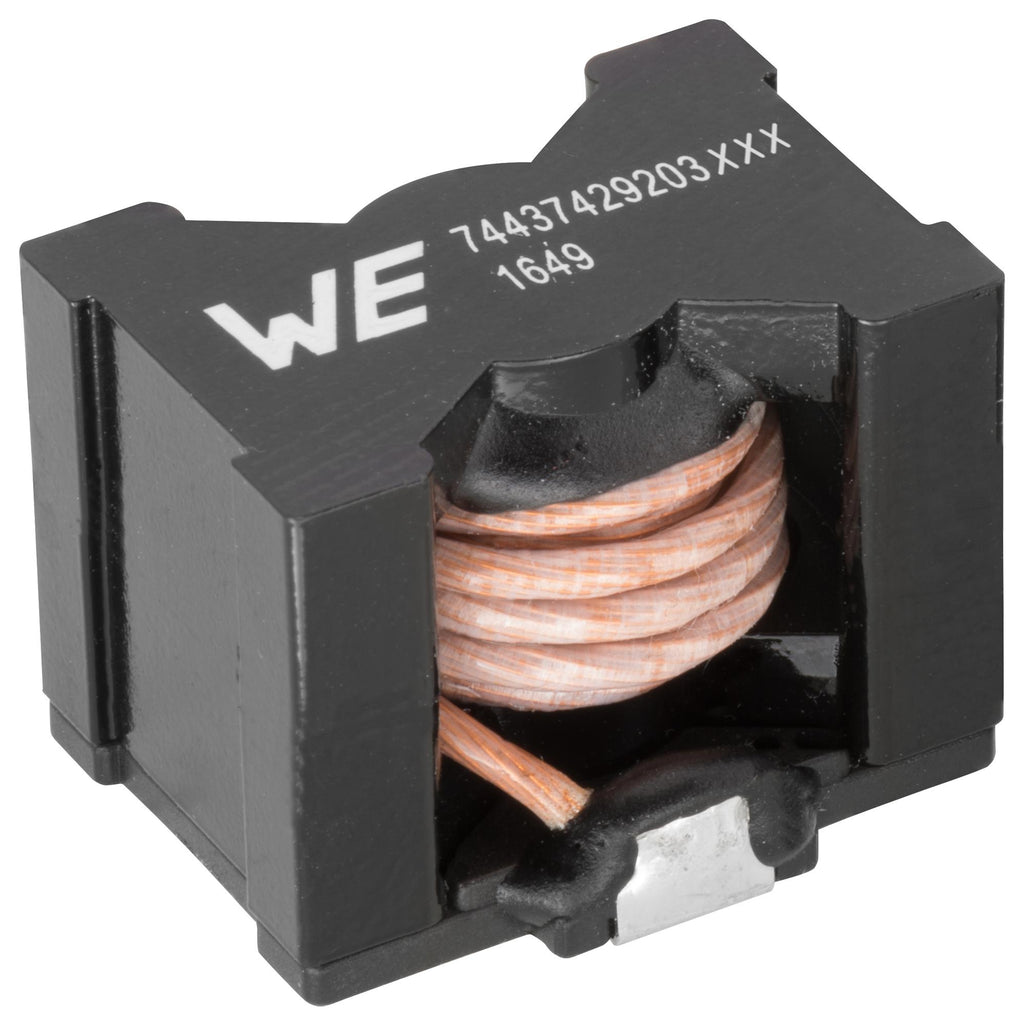

This is a Power Inductor (SMD), 220 µH, 8.8 A, Shielded, 5.3 A, WE-HCF Series, 28mm x 25mm x 20.5mm product from WURTH ELEKTRONIK with the model number 74437529203221
Product details
| Inductance |
220µH |
| RMS Current (Irms) |
8.8A |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
5.3A |
| Product Range |
WE-HCF Series |
| Power Inductor Case |
28mm x 25mm x 20.5mm |
| DC Resistance Max |
0.03645ohm |
| Inductance Tolerance |
± 20% |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
WURTH ELEKTRONIK |
| Part Number |
74437529203221 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
