Description

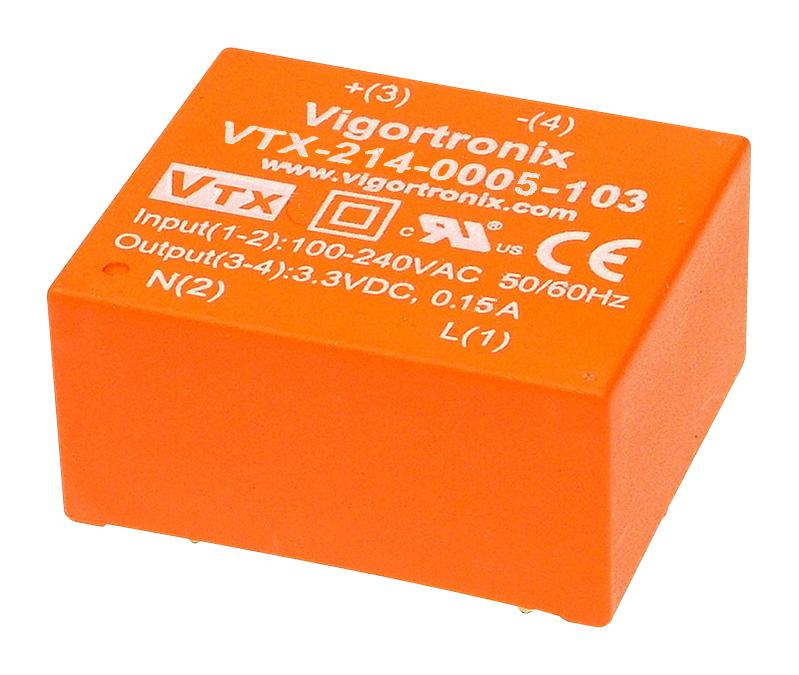

This is a AC/DC PCB Mount Power Supply (PSU), 1 Output, 500 mW, 3.3 V, 151 mA product from VIGORTRONIX with the model number VTX-214-0005-103
Product details
| No. of Outputs | 1 Output |
| Output Power Max | 500mW |
| Output Voltage - Output 1 | 3.3V |
| Output Current - Output 1 | 151mA |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Power Supply Output Type | Fixed |
| Input Voltage AC Min | 90V |
| Input Voltage AC Max | 277V |
| Width | 23.5mm |
| Height | 14mm |
| Depth | 28mm |
| Product Range | VTX-214-0xx Series |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | VIGORTRONIX |
| Part Number | VTX-214-0005-103 |
| Quantity | Each |
| Technical Data Sheet EN |  |
