This is a

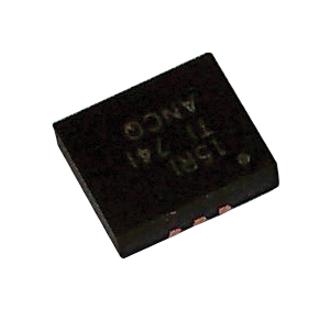

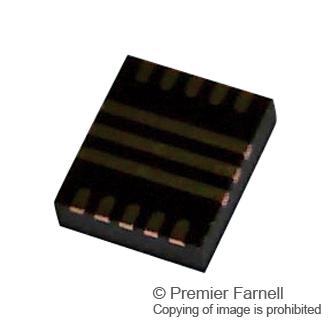

TPS611781RNWT DC-DC Switching Boost (Step Up) Regulator , Adjustable, 2.7V to 20V in, 4.5V-20V/10A out, VQFN-13 product from TEXAS INSTRUMENTS with the model number TPS611781RNWT
Product details
| Topology |
Synchronous Boost (Step Up) |
| Input Voltage Min |
2.7V |
| Input Voltage Max |
20V |
| No. of Outputs |
1Outputs |
| DC / DC Converter IC Case |
VQFN |
| No. of Pins |
13Pins |
| Output Current |
10A |
| Output Voltage Min |
4.5V |
| Output Voltage Max |
20V |
| Switching Frequency |
2.2MHz |
| Operating Temperature Max |
85°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
| MSL |
MSL 2 - 1 year |
Other details
| Brand |
TEXAS INSTRUMENTS |
| Part Number |
TPS611781RNWT |
| Quantity |
Each (Supplied on Cut Tape) |
