Texas Instruments TPS54612PWP Synchronous Buck Step Down Switching Regulator Fixed 3V-6V In 1.2V And 6A Out 550 kHz HTSSOP-28

The TPS54612PWP is a SWIFT� step-down PWM synchronous Buck Converter integrate all required active components. Included on the substrate are true, high-performance, voltage error amplifiers that provide high performance under transient conditions, an under-voltage-lockout circuit to prevent start-up until the input voltage reaches 3V, an internally and externally set slow-start circuit to limit in-rush currents and a powergood output useful for processor/logic reset, fault signalling and supply sequencing. It incorporates an UVLO circuit to keep the device disabled when the input voltage (VIN) is insufficient. During power up, internal circuits are held inactive until VIN exceeds the nominal UVLO threshold voltage of 2.95V. Once the UVLO start threshold is reached, device start-up begins. The device operates until VIN falls below the nominal UVLO stop threshold of 2.8V.

• Internally compensated for easy use and minimal component count
• Fast transient response
• Load protected by peak current limit and thermal shutdown
• Integrated solution reduces board area
• Green product and no Sb/Br

Applications

Communications & Networking, Computers & Computer Peripherals, Portable Devices, Power Management

Other details

Brand	TEXAS INSTRUMENTS
Part Number	TPS54612PWP
Quantity	Each

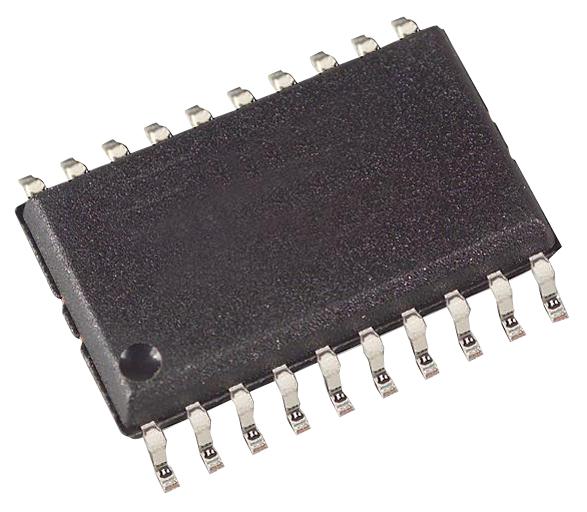

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
