| ₹ 639.19 includes GST and import duties. | |
| B2B customers can avail ₹ 97.48 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

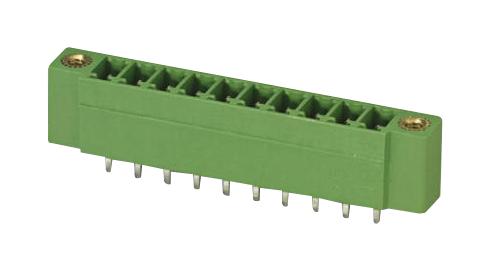

The MCV 1,5/12-GF-3,81 from Phoenix Contact is a 3.81mm pitch, 12 pole header with threaded flange. The header with threaded flange has a plug-in direction vertical to the PCB.
- Nominal current is 8A
- Rated voltage (III/3) is 160V, (III/2) is 160V, (II/2) is 250V
- Rated surge voltage (III/3) is 2.5KV, (III/2) is 2.5KV, (II/2) is 2.5KV
- Green colour PBT insulating material, flammability rating according to UL94 V0
- Maximum flexibility design
- Contact surface is tin
- CSA, VDE, CCA, cULus, EAC standards
- Hole diameter is 1.2mm
- Pin dimension is 0.8mm x 0.8mm, screwable flange for superior mechanical stability
- Vertical connection enables multi-row arrangement on the PCB
Industrial
Other details
| Brand | PHOENIX CONTACT |
| Part Number | MCV 1,5/12-GF-3,81 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 626.41 |
| 3-5 | ₹ 620.01 |
| 5-10 | ₹ 607.23 |
| 10+ | ₹ 594.45 |
Bulk discount will be automatically applied during checkout based on quantity.
