Description
The MJ21193G is a -250V Silicon PNP Bipolar Power Transistor that utilizes perforated emitter technology and is specifically designed for high power audio output, disk head positioners and linear applications.
- Total harmonic distortion characterized
- High DC current gain
- Excellent gain linearity
- High SOA
Applications
Audio, Industrial
Product details
| Power Dissipation Pd | 250W |
| DC Collector Current | 16A |
| Collector Emitter Voltage V(br)ceo | 250V |
| Transition Frequency ft | 4MHz |
| Operating Temperature Max | 200°C |
| Transistor Polarity | PNP |
| DC Current Gain hFE | 75hFE |
| No. of Pins | 3Pins |
| Product Range | - |
| Automotive Qualification Standard | - |

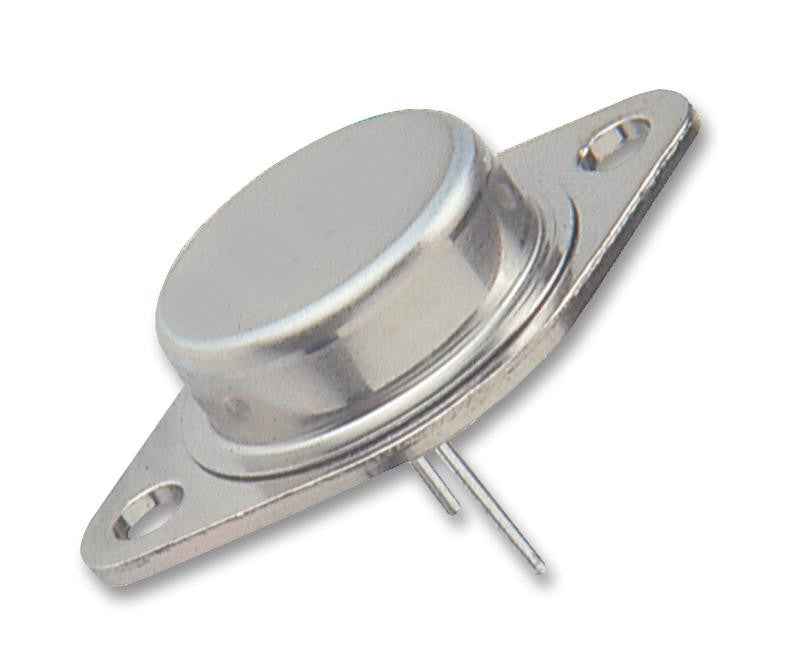

| Transistor Case Style | TO-3 |
| MSL | - |
Other details
| Brand | ON SEMICONDUCTOR |
| Part Number | MJ21193G |
| Quantity | Each |
| Technical Data Sheet EN |  |
|
