Maxim Integrated / Analog Devices MAX16009TG+ MAX16009TG+ MPU Supervisor 4 Monitors 1V-5.5V Supply Active-Low Open-Drain 394 mV Threshold TQFN-24

The MAX16009TG+ is a low voltage, high-accuracy, quad window voltage detector in 24 pin TQFN package. It is designed to provide a higher level of system reliability by monitoring multiple supply voltages and providing a fault signal when any of the voltages exceed their overvoltage thresholds or fall below their undervoltage thresholds. The user-adjustable thresholds allow voltages to be monitored down to 0.4V. This device allow the upper and lower trip thresholds of each window detector to be set externally with the use of three external resistors. Each monitored threshold has an independent open drain output for signalling a fault condition. The outputs can be wire OR'ed together to provide a single fault output. The open-drain outputs are internally pulled up with a 30µA current but can be externally driven to other voltage levels for interfacing to other logic levels. It feature a margin input to disable the outputs during margin testing or any other time after power-up operations.

• Supply voltage range is 1V to 5.5V
• Operating temperature range from -40°C to 125°C
• Monitor four undervoltage/overvoltage conditions
• 1.5% accuracy over temperature
• Output logic state down to VCC = 1V
• Manual reset input
• Reset timeout is internally set to 140ms or can be externally adjusted using an external capacitor

Applications

System Monitoring, Communications & Networking

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MAXIM INTEGRATED / ANALOG DEVICES
Part Number	MAX16009TG+
Quantity	Each
Technical Data Sheet EN

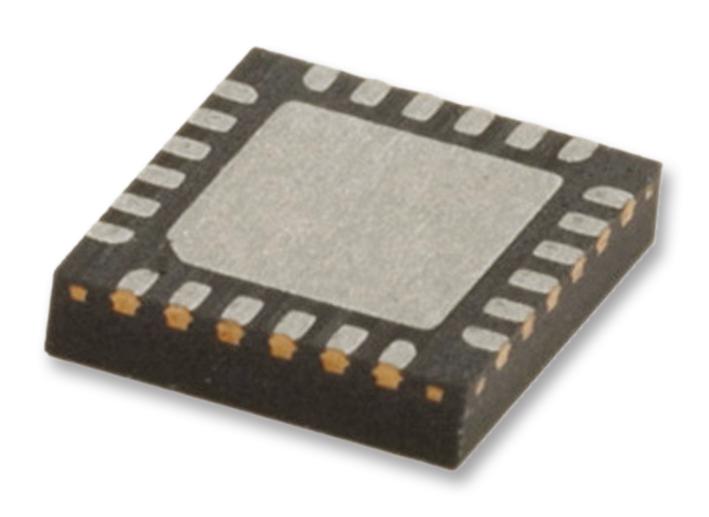

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
