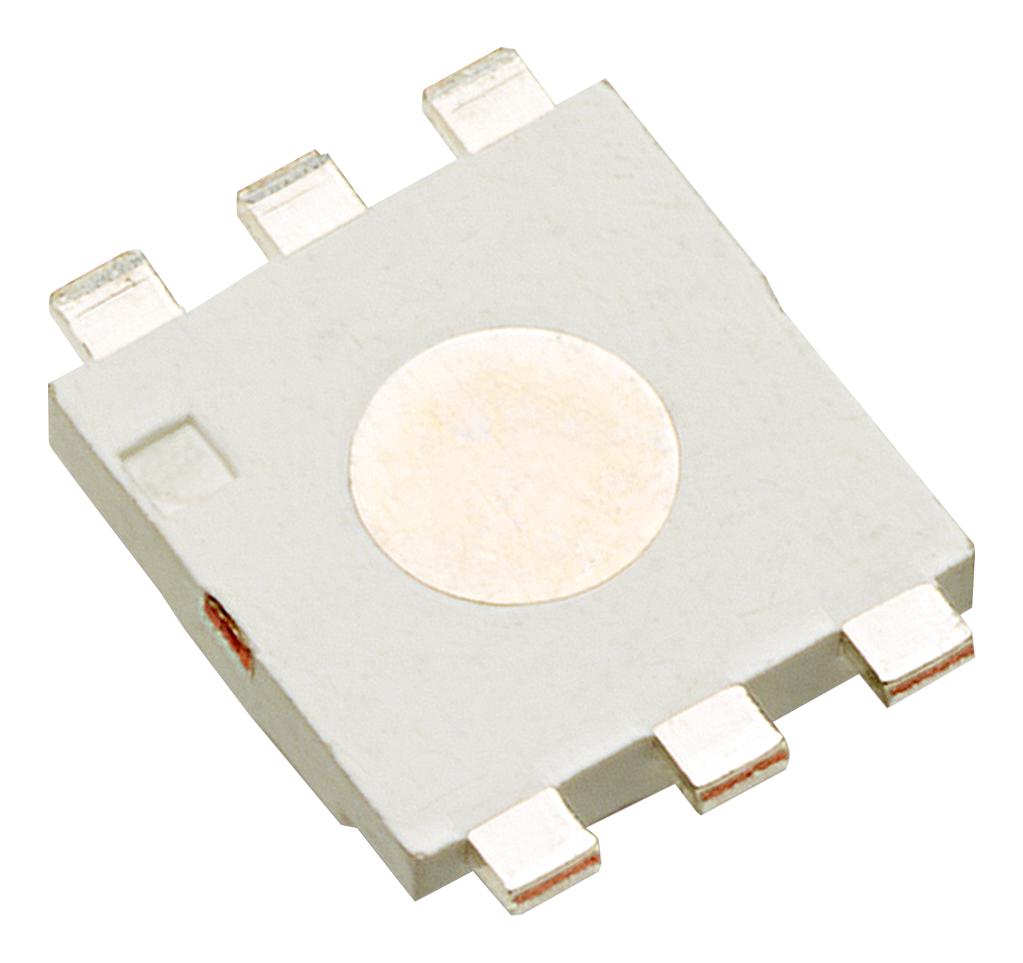

This is a High Brightness LED, Red, Green, Blue, 155 °, R 2.2V, G 3.1V, B 3V, R 623nm, G 530nm, B 458nm product from BROADCOM LIMITED with the model number ASMG-PT00-00001
Product details
| Product Range |
- |
| LED Colour |
Red, Green, Blue |
| Viewing Angle |
155° |
| Forward Voltage @ Test |
R 2.2V, G 3.1V, B 3V |
| Wavelength / Colour |
R 623nm, G 530nm, B 458nm |
| Luminous Flux / Colour |
R 28lm, G 45lm, B 9.5lm |
| Forward Current @ Test / Colour |
R 150mA, G 150mA, B 150mA |
| Forward Current Max |
R 200mA, G 200mA, B 200mA |
| Power Dissipation Pd |
- |
| RoHS Phthalates Compliant |
Yes |
| MSL |
MSL 1 - Unlimited |
Other details
| Brand |
BROADCOM LIMITED |
| Part Number |
ASMG-PT00-00001 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
