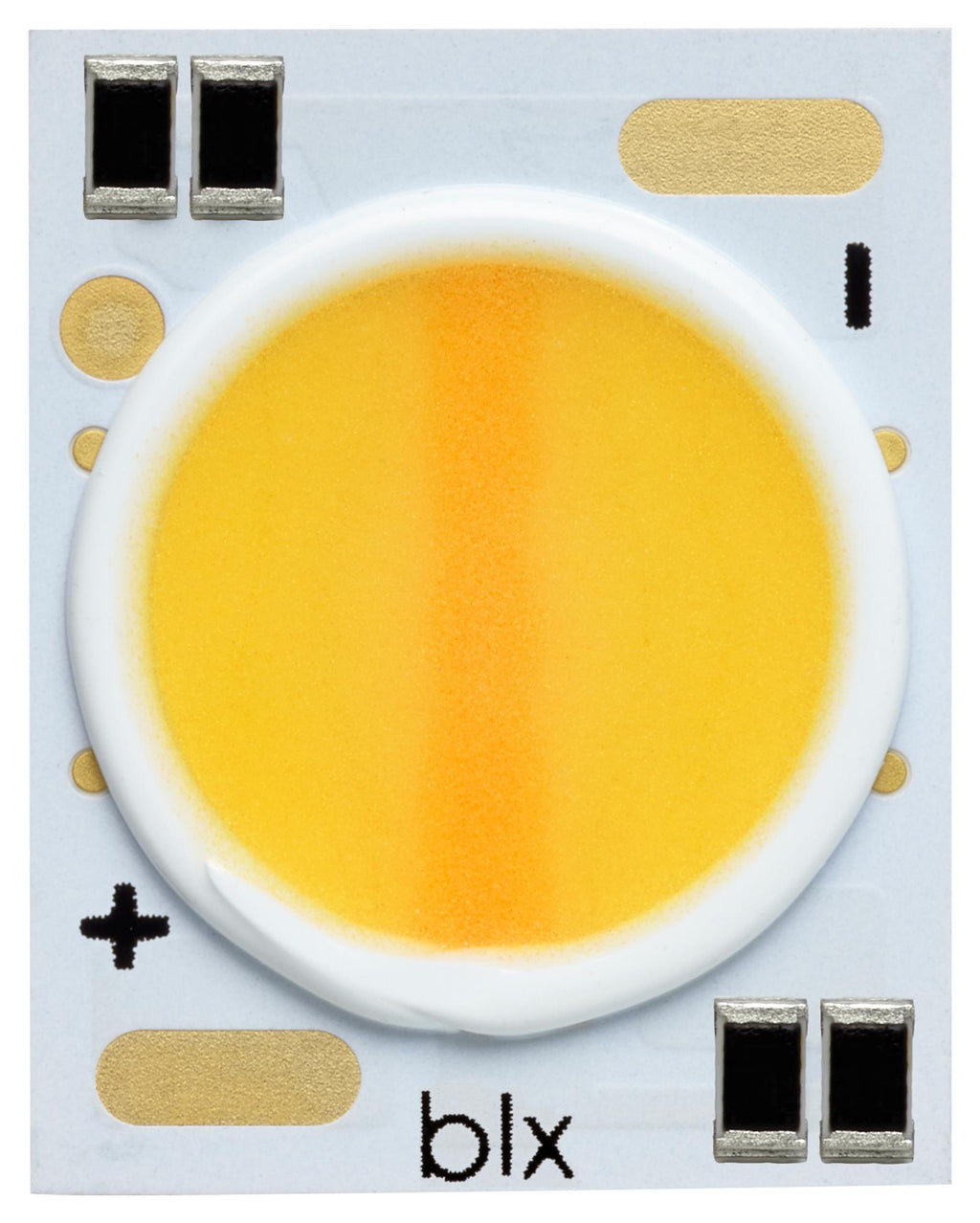

Vesta� Series Dim-To-Warm Array products deliver adaptable light in a cost-effective, solid state lighting package. Vesta� Series products tap into the powerful mediums of light and color to influence experience, well-being, and human emotion. They allow fixture manufacturers to simulate the familiar glow and dimming of incandescent lamps. This high flux density light source is designed to support a wide range of high quality, low cost directional luminaires and replacement lamps for commercial and residential applications
- Dimming range from 3000K to 1800K
- Efficacy of 102 lm/W typical
- Uniform, high quality illumination
- Minimum 95 CRI option
- More energy efficient than incandescent, halogen and fluorescent lamps
- Industry standardized dimensions
- Flux packages from 3300 to 3630 lumens typical
Applications
LED Lighting
Product details
| COB Colour |
Warm White |
| Color Rendering Index Max |
95 |
| Power Rating |
32.4W |
| Luminous Flux @ Test |
3300lm |
| Forward Current @ Test |
950mA |
| Viewing Angle |
110° |
| Forward Voltage VF Typ |
34.1V |
| Nominal CCT (K) |
3000K |
| COB Length |
24mm |
| COB Width |
20mm |
| Opto Case Style |
SMD-2, No Lead |
| Lumens / Watt @ Current Test |
102lm/W |
| Light Emitting Surface |
15mm |
| Lens Type |
- |
| Lens Shape |
Round with Flat Top |
| Height |
1.56mm |
| Product Range |
Vesta Series |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
BRIDGELUX |
| Part Number |
BXRV-DR-1830H-3000-A-13 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
