Description

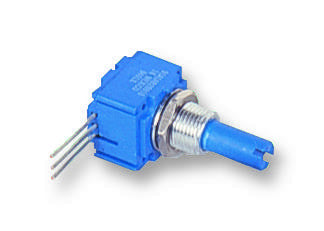

The Bourns 91 series are through hole, panel control potentiometer. These potentiometers are single turn which is designed for frequent adjustment application. These devices are available in plastic or metal bushing and shaft combination.
- 5/8inch square potentiometer, in line PC pins
- Sealing is IP40 rated
- Conductive plastic/cermet element type
- �5%, �10% and �20% tolerance
- Resistance value ranges from 100 ohm to 1Mohm
- High Rotational life
- Linear and audio taper available
- Maximum power rating is 2W
- Operating temperature range -40�C to +125�C
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Shaft Length | 22.2mm |
| Shaft Diameter | 6.35mm |
| No. of Gangs | 1 |
| Adjustment Type | Screwdriver Slot |
| Resistance Tolerance | � 20% |
| Product Range | 91 Series |
| Track Taper | Log (Audio) |
| No. of Turns | 1Turns |
| Potentiometer Mounting | Through Hole |
| Power Rating | 500mW |
| Track Resistance | 1kohm |
Other details
| Brand | BOURNS |
| Part Number | 91A1A-B28-D10L |
| Quantity | Each |
| Technical Data Sheet EN |  |
