Description
Product Overview

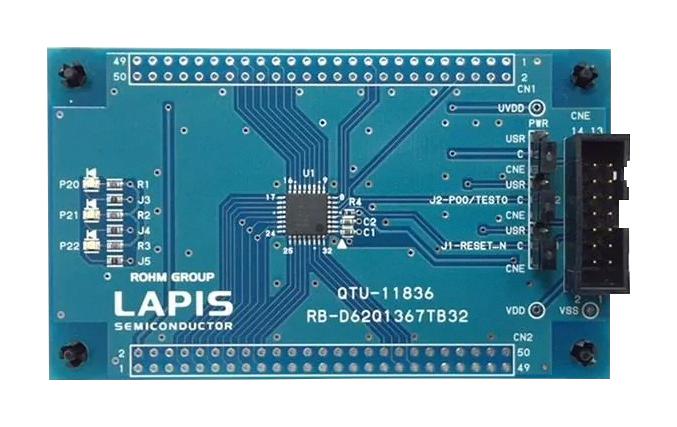

RB-D62Q1367TB32 is a ML62Q1367 reference board. It can be used for learning �how to use� the ML62Q1367, on which the user needs to provide additional external components if necessary. By using the ML62Q1367 reference board together with the LAPIS Semiconductor�s on-chip emulator EASE1000 and the provided software development environment, the user can develop software, debug and program the Flash.
- Board is populated with ML62Q1367 32pin TQFP package
- Mounted with the linked connector to EASE1000
- Through-holes for connecting the pins of LSI to external peripheral boards
- Power supply is selectable; supplied from the on-chip emulator EASE1000 or CN1-3pin /CN2-2pin
- Mounted with LED (P20,P21,P22)
- Operating voltage ranges from +1.6 to +5.5V (supply VDD with up to 1.8V or higher during power up)
- Board size is 55.88mm x 93.98mm
Product details
Other details
| Brand | ROHM |
| Part Number | RB-D62Q1367TB32 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 5490.14 |
| 3-5 | ₹ 5434.11 |
| 5-10 | ₹ 5322.07 |
| 10+ | ₹ 5210.03 |
Bulk discount will be automatically applied during checkout based on quantity.
