Description
Product Overview

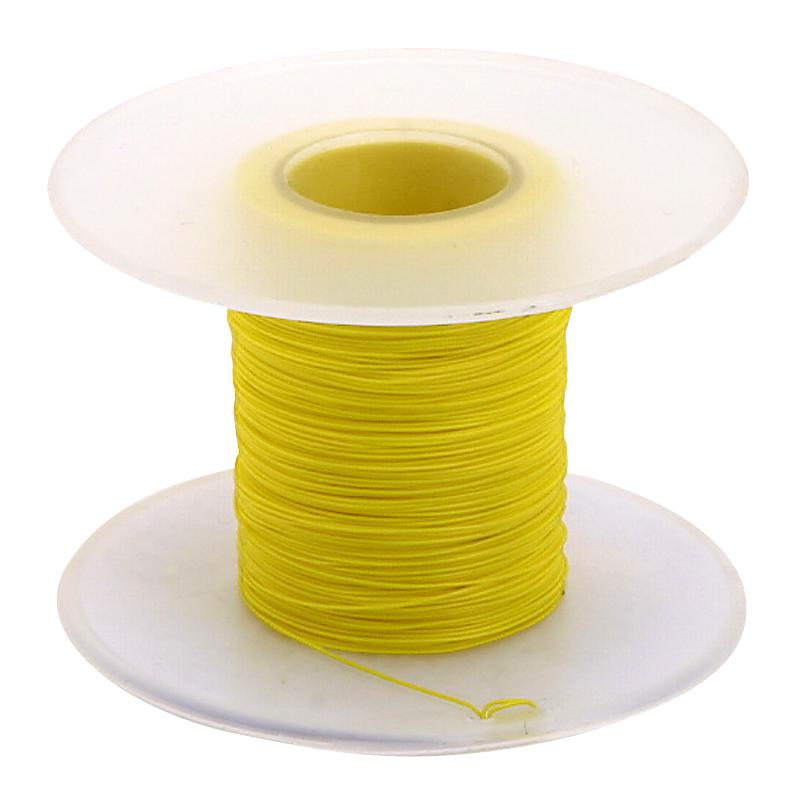

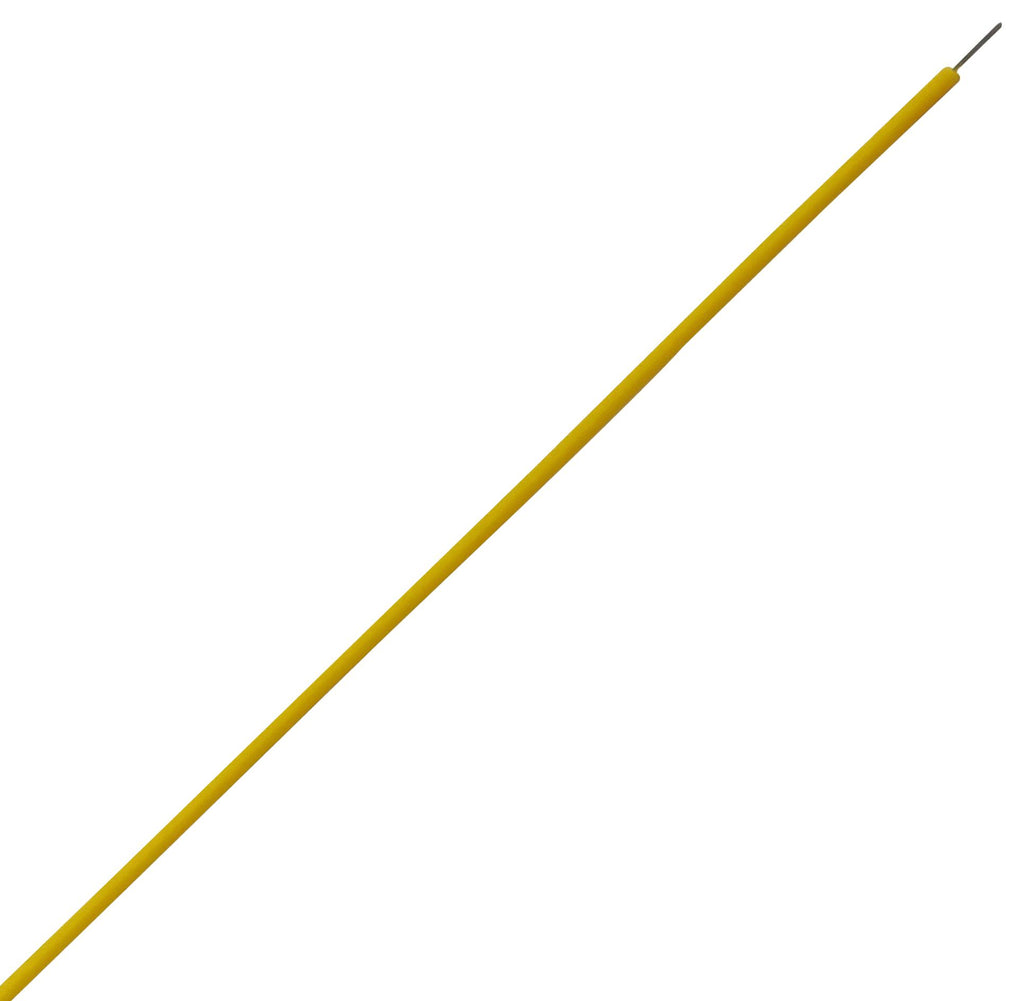

MP013960 is a hook-up wire. Suitable for used in the wiring of switch, control, metering and instrumentation panels and the internal connections in motor starters and controllers.
- 0.05mm² nominal area, 1/0.26 conductor composition
- 0.2mm radial thickness of insulation, 0.7mm nominal diameter
- 361ohm/km max conductor resistance at 20°C
- Silver plated oxygen free copper material, PVDF insulation
- 6 × O.Dmm min bend radius, 3000V spark test
- 600V voltage rating, 100Mohm min insulation resistance at 20°C
- Yellow colour, 100m pack length, 30AWG wire gauge
- Operating temperature range from -60°C to 150°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MP013960 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
