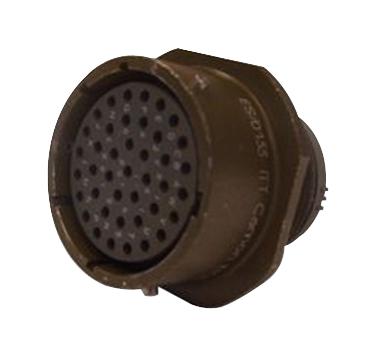

ITT CANNON KPT02E14-18SWA206 Circular Connector, KPT Series, MIL-DTL-26482 Series I, Box Mount Receptacle, 18 Contacts

The KPT02E14-18SWA206 from ITT Cannon is KPT series, MIL-DTL-26482 series I equivalent box mount receptacle with 18 contacts. The KPT series miniature circular connectors conforms to meet the performance specification to MIL-DTL-26482 series I with a positive three point quick disconnect bayonet coupling, five keyway polarization and high insert arrangement contact density. These connectors are designed for harsh environments and have well-proven electrical capability to withstand extreme shock, exposure and vibration. The KPT series general purpose solder connectors are optimized for fast assembly featuring clip-in contact & insulator design. They are intermateable, intermountable and interchangeable with all MIL-DTL-26482 connectors. Design modifications can be achieved at low cost.

• Bayonet coupling assures fast and reliable mating/unmating
• Environmentally sealed, IP68 rated
• Operating temperature range from -55°C to +125°C
• Durability of 500 mating cycles
• 200m/s² at 10Hz to 2000Hz vibration
• Insulation resistance is 5000Mohm at 25°C
• Resilient polychloroprene (neoprene) insulator and grommet
• Salt spray exposure of 200hour
• Aluminium alloy body material with conductive black zinc cobalt plating
• Copper alloy solder socket contacts with gold plating

Applications

Industrial, Commercial
