Description
Product Overview

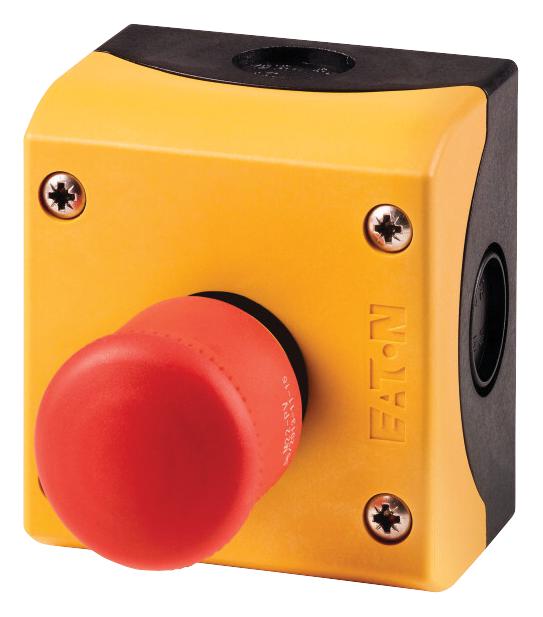

M22-PV/KC02/IY is a M22 controlled stop pushbutton/emergency-stop button housing. It is certified by IEC/EN 60947-5, UL File No.: E29184, CSA, CSA Class No.: 3211-03, UL category control No.: NKCR, UL, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91, VDE 0660, CSA File No.: 012528, UL 508, IEC/EN 60947.
- Dimension is 3.9'' x 3.1'' x 2.8'' (l x h x w), mushroom-shaped design
- Yellow enclosure colour, plastic enclosure material, non-illuminated illumination
- 100,000 mechanical operations (lifespan), 600Hz operating frequency
- Rated control supply voltage from 115VAC to 500VAC
- 1kA rated conditional short-circuit current (Iq)
- Screw connection type, yellow colour housing cover, plastic housing material
- Rated control supply voltage 24VDC to 220VDC
- Actuating force is 50N (actuator), force for positive opening is 30N minimum
- Operating temperature range from -25°C to 70°C
Product details
Other details
| Brand | EATON MOELLER |
| Part Number | M22-PV/KC02/IY |
| Quantity | Each |
| Technical Data Sheet EN |  |
